Architectural · A-6A3PV

Typical Stair Landing Top

Materials

Concrete Steel

Elements

Columns Walls Stairs Floors / Slabs Decks

Connections

HSS Connection Welded Connection Deck Attachment

About this detail

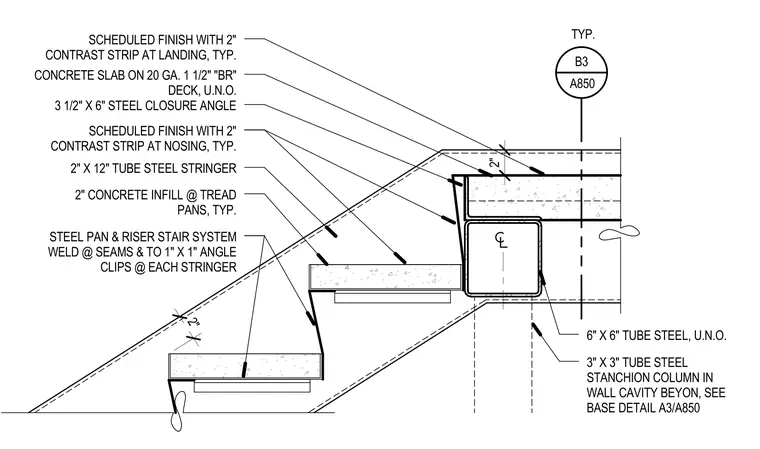

A steel pan and riser stair system with two inches of concrete infill at the tread pans connects to a two-by-twelve-inch tube steel stringer via welds at seams and to one-by-one-inch angle clips at each stringer. The stair assembly interfaces with a landing consisting of a concrete slab on twenty-gauge one-and-one-half-inch 'BR' deck supported by a three-and-one-half-by-six-inch steel closure angle. A six-by-six-inch tube steel member acts as the landing support, while a three-by-three-inch tube steel stanchion column is positioned within the wall cavity beyond. Scheduled finishes with two-inch contrast strips are applied at both the landing and nosing.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
