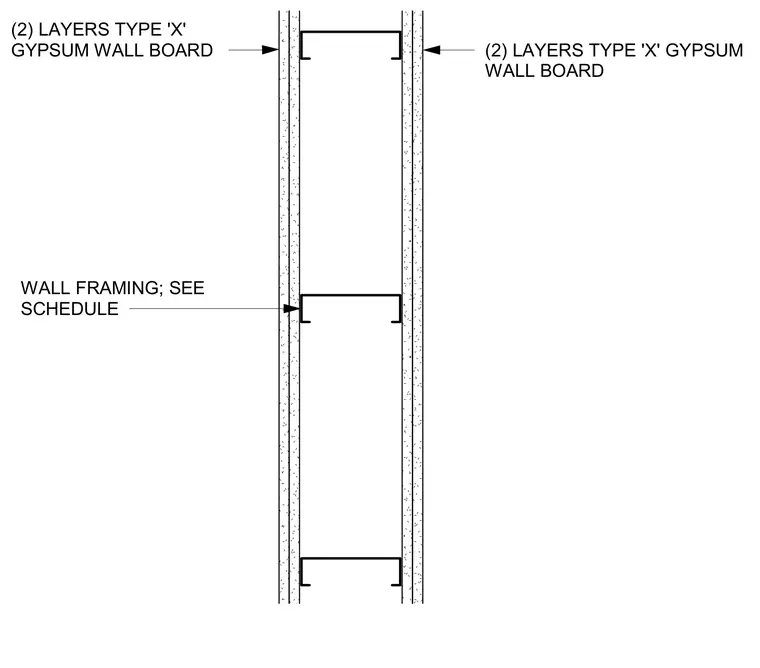

Metal stud wall framing is finished on both sides with two layers of Type X gypsum wall board. Stud sizing is specified per the architectural door or wall schedule.
(2) LAYERS TYPE 'X' GYPSUM WALL BOARD WALL FRAMING; SEE SCHEDULE (2) LAYERS TYPE 'X' GYPSUM WALL BOARD
