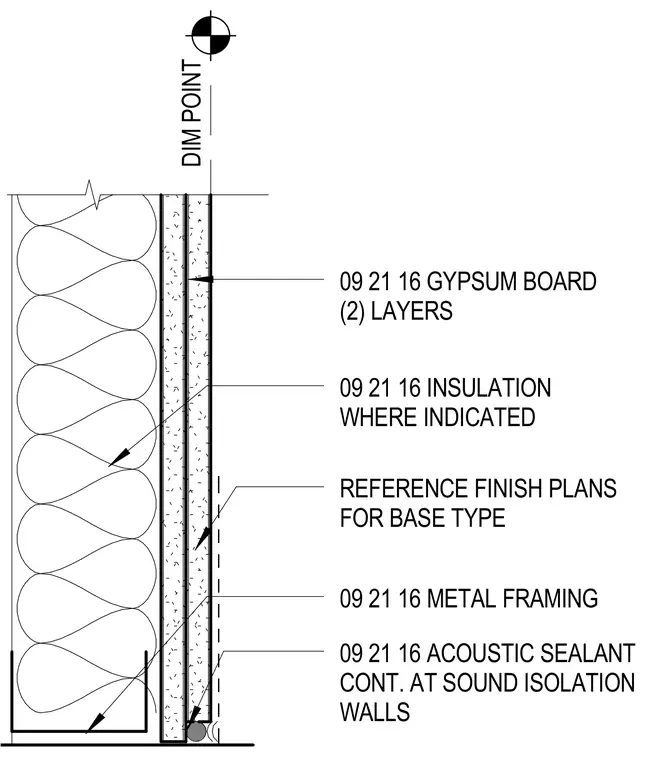

This furring partition assembly consists of metal framing finished with two layers of gypsum board on the face. Insulation is provided within the cavity where indicated. Continuous acoustic sealant is installed at the base of sound isolation walls. Base types are referenced from the finish plans.
DIM POINT 09 21 16 INSULATION WHERE INDICATED 09 21 16 ACOUSTIC SEALANT CONT. AT SOUND ISOLATION WALLS REFERENCE FINISH PLANS FOR BASE TYPE 09 21 16 GYPSUM BOARD (2) LAYERS 09 21 16 METAL FRAMING
