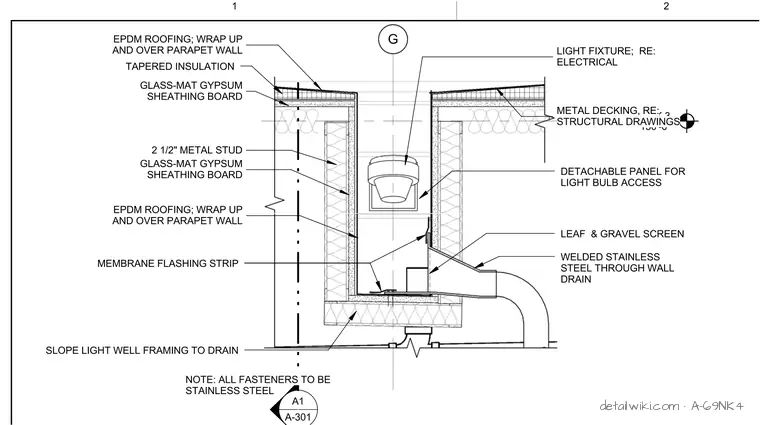

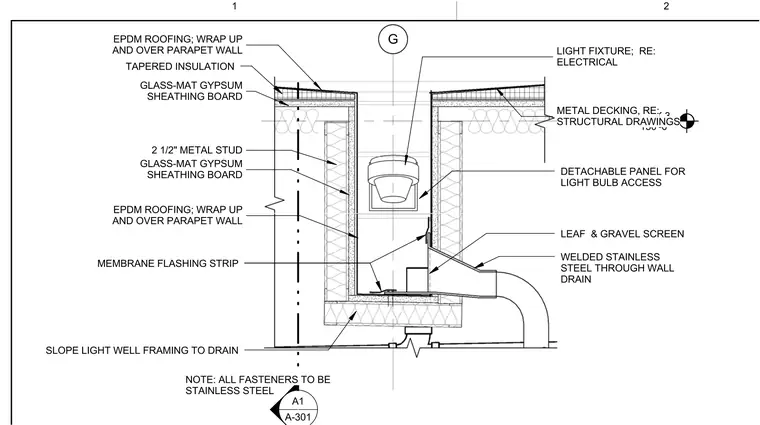

The roof assembly features tapered insulation over metal decking, with EPDM roofing wrapping up and over the parapet wall over glass-mat gypsum sheathing board. The light well is framed with two and one-half inch metal studs supporting glass-mat gypsum sheathing board and an EPDM membrane wrap. A welded stainless steel through-wall drain collects water from the sloped light well framing, equipped with a leaf and gravel screen and a membrane flashing strip. A light fixture with a detachable panel for bulb access is integrated into the well, and all fasteners are specified as stainless steel.
G A1 A-301 TOWER DECK 3 150'-0" DETACHABLE PANEL FOR LIGHT BULB ACCESS METAL DECKING, RE: STRUCTURAL DRAWINGS 2 1/2" METAL STUD GLASS-MAT GYPSUM SHEATHING BOARD EPDM ROOFING; WRAP UP AND OVER PARAPET WALL GLASS-MAT GYPSUM SHEATHING BOARD EPDM ROOFING; WRAP UP AND OVER PARAPET WALL LIGHT FIXTURE; RE: ELECTRICAL SLOPE LIGHT WELL FRAMING TO DRAIN LEAF & GRAVEL SCREEN WELDED STAINLESS STEEL THROUGH WALL DRAIN TAPERED INSULATION MEMBRANE FLASHING STRIP NOTE: ALL FASTENERS TO BE STAINLESS STEEL 1 2
