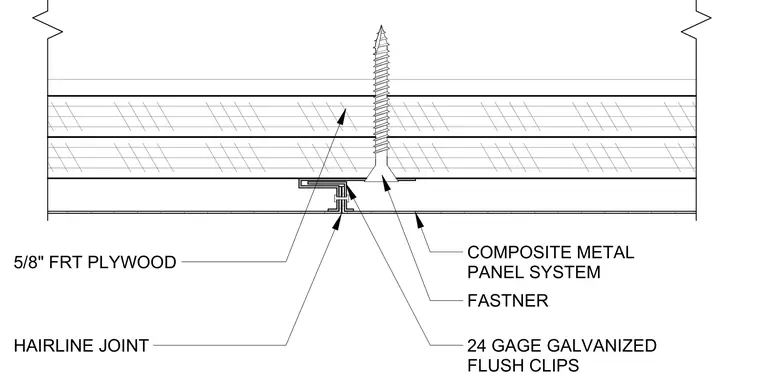

A composite metal panel system is installed over five-eighths-inch fire-retardant treated plywood with a hairline joint between panels. Twenty-four gauge galvanized flush clips secure the panels and are fastened with countersunk fasteners.
HAIRLINE JOINT 5/8" FRT PLYWOOD FASTNER COMPOSITE METAL PANEL SYSTEM 24 GAGE GALVANIZED FLUSH CLIPS
