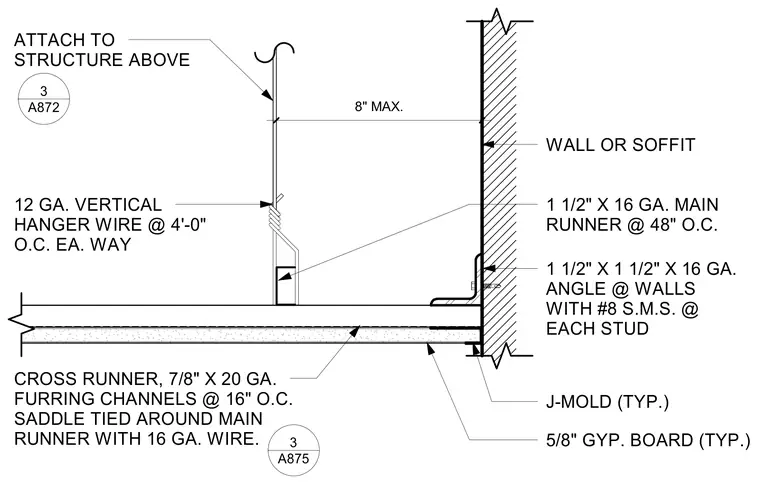

A twelve-gauge vertical hanger wire attaches to the structure above and ties to a one-and-one-half-inch by sixteen-gauge main runner spaced at forty-eight inches on center. Seven-eighths-inch by twenty-gauge furring channels span across the runners at sixteen inches on center and are saddle tied with sixteen-gauge wire. A one-and-one-half-inch by one-and-one-half-inch by sixteen-gauge angle fastens to the wall with number eight sheet metal screws at each stud. Five-eighths-inch gypsum board finishes the ceiling with a J-mold at the perimeter boundary.
A872 3 A875 3 8" MAX. ATTACH TO STRUCTURE ABOVE 12 GA. VERTICAL HANGER WIRE @ 4'-0" O.C. EA. WAY CROSS RUNNER, 7/8" X 20 GA. FURRING CHANNELS @ 16" O.C. SADDLE TIED AROUND MAIN RUNNER WITH 16 GA. WIRE. WALL OR SOFFIT 1 1/2" X 16 GA. MAIN RUNNER @ 48" O.C. 1 1/2" X 1 1/2" X 16 GA. ANGLE @ WALLS WITH #8 S.M.S. @ EACH STUD 5/8" GYP. BOARD (TYP.) J-MOLD (TYP.)
