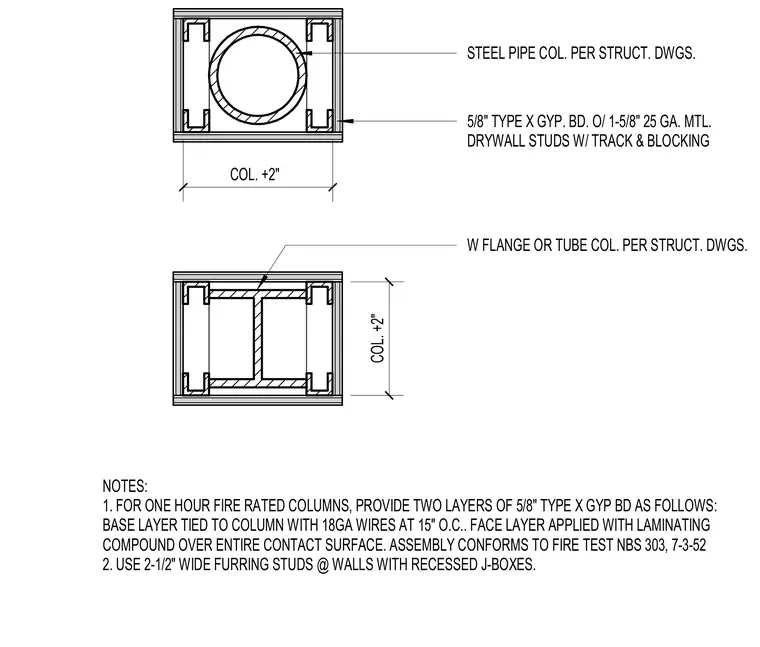

Metal stud furring and gypsum board enclosures surround structural steel columns. The framing consists of one-and-five-eighths-inch twenty-five gauge metal drywall studs with track and blocking, finished with five-eighths-inch Type X gypsum board on the exterior. For one-hour fire-rated columns, two layers of five-eighths-inch Type X gypsum board are required, with the base layer tied to the column using eighteen-gauge wires at fifteen inches on center and the face layer applied with laminating compound over the entire contact surface. Two-and-one-half-inch wide furring studs are specified at walls containing recessed junction boxes.
STEEL PIPE COL. PER STRUCT. DWGS. 5/8" TYPE X GYP. BD. O/ 1-5/8" 25 GA. MTL. DRYWALL STUDS W/ TRACK & BLOCKING W FLANGE OR TUBE COL. PER STRUCT. DWGS. NOTES: 1. FOR ONE HOUR FIRE RATED COLUMNS, PROVIDE TWO LAYERS OF 5/8" TYPE X GYP BD AS FOLLOWS: BASE LAYER TIED TO COLUMN WITH 18GA WIRES AT 15" O.C.. FACE LAYER APPLIED WITH LAMINATING COMPOUND OVER ENTIRE CONTACT SURFACE. ASSEMBLY CONFORMS TO FIRE TEST NBS 303, 7-3-52 2. USE 2-1/2" WIDE FURRING STUDS @ WALLS WITH RECESSED J-BOXES. COL. +2" COL. +2"
