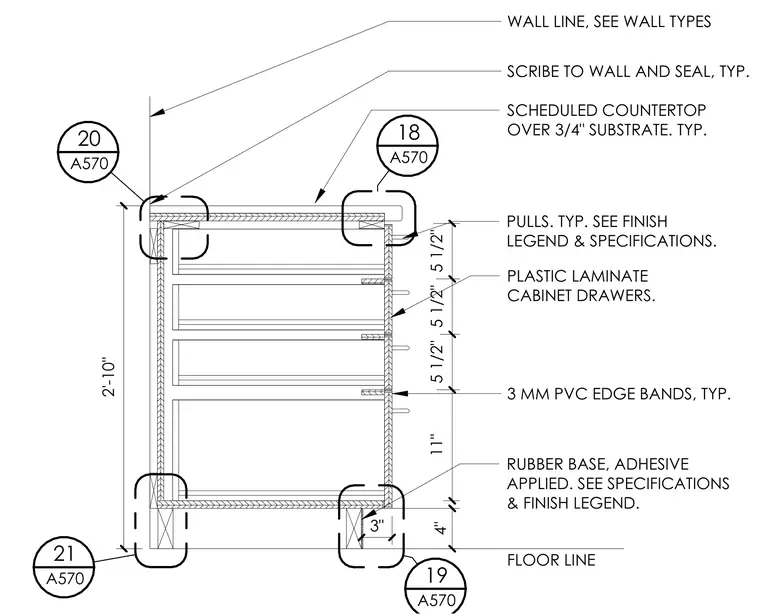

A four-drawer base cabinet sits on the floor line with a four-inch toe space. The unit features plastic laminate cabinet drawers with three-millimeter PVC edge bands typically applied. Cabinet drawer heights measure five and one-half inches for the top three drawers and eleven inches for the bottom drawer, with pulls attached as specified. A scheduled countertop sits over a three-quarter-inch substrate and is scribed to the wall and sealed typical. A rubber base is adhesive applied at the bottom adjacent to the floor line.
FLOOR LINE WALL LINE, SEE WALL TYPES 2'-10" A570 18 SCRIBE TO WALL AND SEAL, TYP. 5 1/2" 5 1/2" 5 1/2" 11" A570 19 A570 20 A570 21 3 MM PVC EDGE BANDS, TYP. 3" SCHEDULED COUNTERTOP OVER 3/4" SUBSTRATE. TYP. PLASTIC LAMINATE CABINET DRAWERS. PULLS. TYP. SEE FINISH LEGEND & SPECIFICATIONS. RUBBER BASE, ADHESIVE APPLIED. SEE SPECIFICATIONS & FINISH LEGEND. 4"
