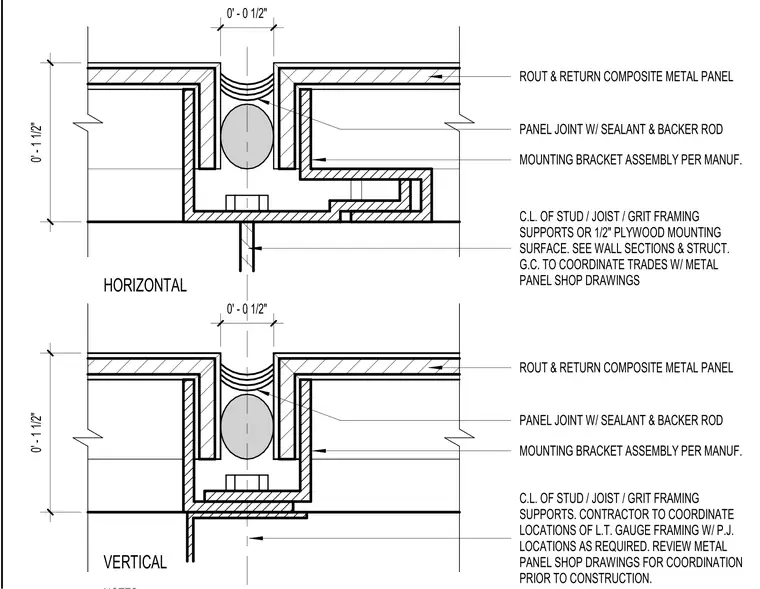

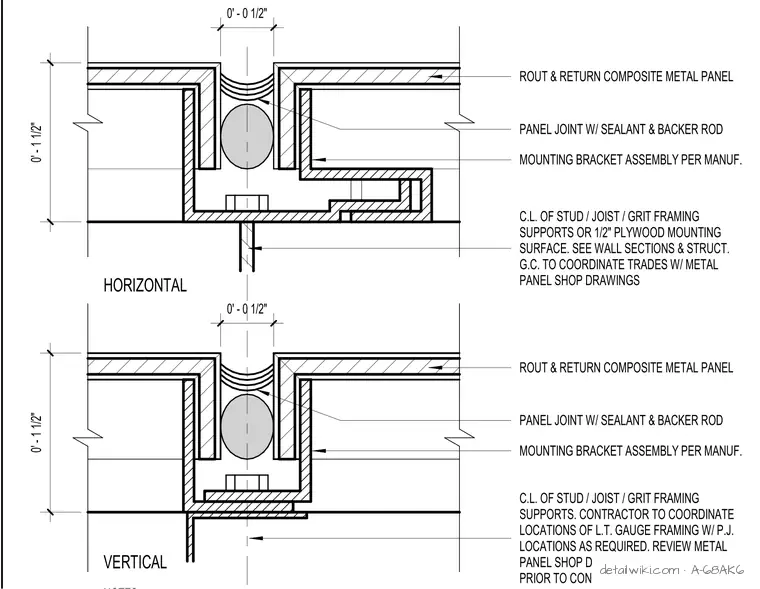

Rout and return composite metal panels secure to a mounting surface via manufacturer-specified mounting bracket assemblies. A backer rod and sealant finish the panel joint. The mounting surface consists of a half-inch plywood substrate or light-gauge framing supports, with the center line of the framing coordinated to the panel joint locations. The general contractor coordinates trade work and verifies panel joint locations against the metal panel shop drawings prior to construction.
Text on the drawing
NOTES: 1. CONTRACTOR SHALL PROVIDE DETAILED SHOP DRAWINGS SHOWING ALL CONNECTIONS. ROUT & RETURN COMPOSITE METAL PANEL 0' - 0 1/2" 0' - 1 1/2" 0' - 1 1/2" 0' - 0 1/2" PANEL JOINT W/ SEALANT & BACKER ROD MOUNTING BRACKET ASSEMBLY PER MANUF. C.L. OF STUD / JOIST / GRIT FRAMING SUPPORTS OR 1/2" PLYWOOD MOUNTING SURFACE. SEE WALL SECTIONS & STRUCT. G.C. TO COORDINATE TRADES W/ METAL PANEL SHOP DRAWINGS ROUT & RETURN COMPOSITE METAL PANEL PANEL JOINT W/ SEALANT & BACKER ROD MOUNTING BRACKET ASSEMBLY PER MANUF. C.L. OF STUD / JOIST / GRIT FRAMING SUPPORTS. CONTRACTOR TO COORDINATE LOCATIONS OF L.T. GAUGE FRAMING W/ P.J. LOCATIONS AS REQUIRED. REVIEW METAL PANEL SHOP DRAWINGS FOR COORDINATION PRIOR TO CONSTRUCTION. VERTICAL HORIZONTAL
