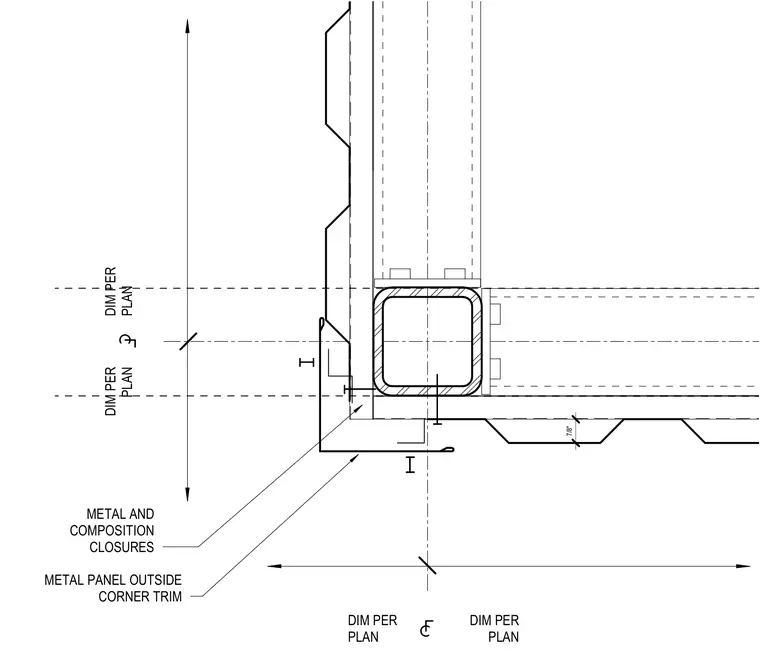

Metal panel outside corner trim and metal and composition closures detail the exterior corner junction of a metal wall panel system. The profiled metal panels wrap around a hollow structural steel column framing member, meeting at an outside corner trim piece. Dimensions are provided per plan to locate the corner configuration and panel offsets. Fasteners secure the trim and panel assembly to the underlying substrate and framing elements.
DIM PER PLAN DIM PER PLAN DIM PER PLAN DIM PER PLAN METAL PANEL OUTSIDE CORNER TRIM METAL AND COMPOSITION CLOSURES 7/8"
