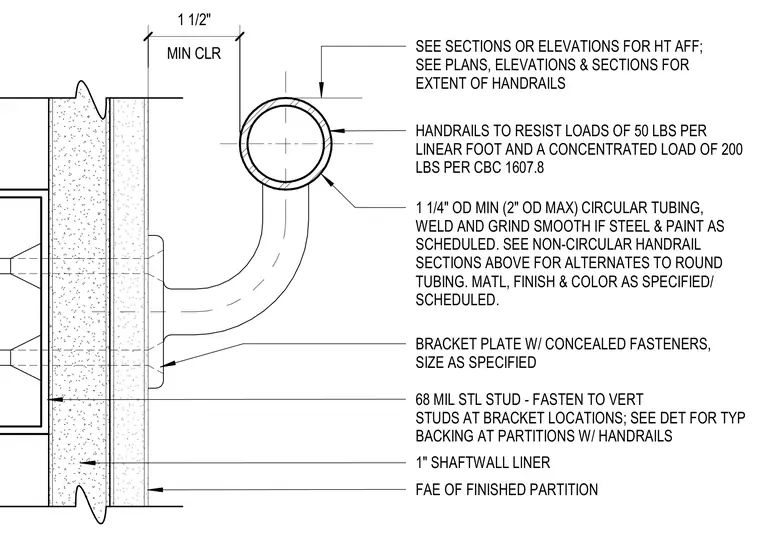

A circular handrail is supported by a bracket plate with concealed fasteners attached to a sixty-eight mil steel stud. The handrail consists of one and a quarter inch to two inch outside diameter circular tubing, welded and ground smooth if steel and painted as scheduled. The bracket plate fastens to vertical studs at bracket locations with typical backing at partitions with handrails. A one inch shaftwall liner backs the assembly, maintaining a minimum one and a half inch clear distance from the face of the finished partition.
1 1/4" OD MIN (2" OD MAX) CIRCULAR TUBING, WELD AND GRIND SMOOTH IF STEEL & PAINT AS SCHEDULED. SEE NON-CIRCULAR HANDRAIL SECTIONS ABOVE FOR ALTERNATES TO ROUND TUBING. MATL, FINISH & COLOR AS SPECIFIED/ SCHEDULED. BRACKET PLATE W/ CONCEALED FASTENERS, SIZE AS SPECIFIED 68 MIL STL STUD - FASTEN TO VERT STUDS AT BRACKET LOCATIONS; SEE DET FOR TYP BACKING AT PARTITIONS W/ HANDRAILS FAE OF FINISHED PARTITION MIN CLR 1 1/2" SEE SECTIONS OR ELEVATIONS FOR HT AFF; SEE PLANS, ELEVATIONS & SECTIONS FOR EXTENT OF HANDRAILS HANDRAILS TO RESIST LOADS OF 50 LBS PER LINEAR FOOT AND A CONCENTRATED LOAD OF 200 LBS PER CBC 1607.8 1" SHAFTWALL LINER / /
