Architectural · A-67ZV5

Stair Landing Wall and Concrete Slab Connection

Materials

Concrete Steel

Elements

Walls Partitions Stairs Floors / Slabs Connections / Plates

Connections

Welded Connection

About this detail

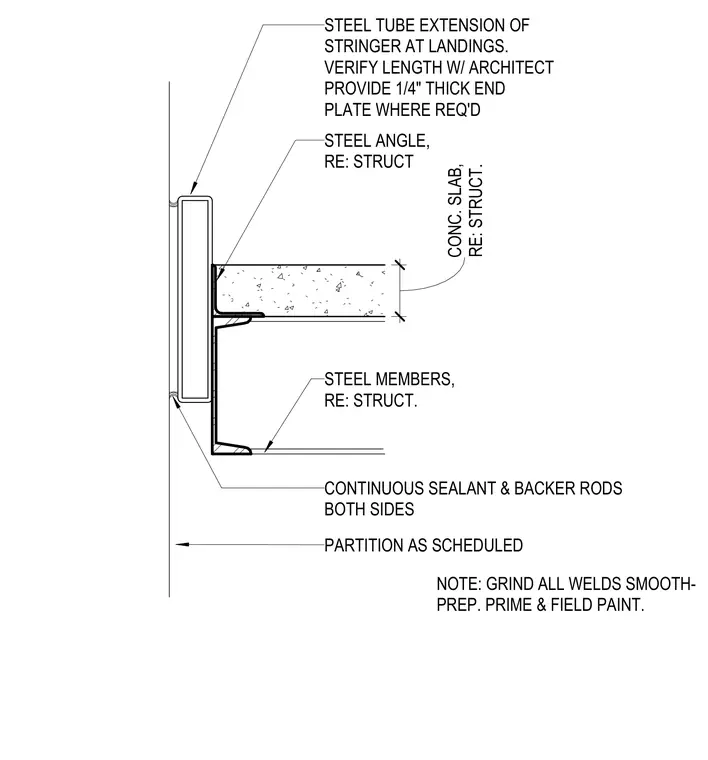

A stair landing side wall connection meets a structural concrete slab and steel framing members. A steel tube extension of the stair stringer frames against the partition assembly, with its length verified by the architect and a one-quarter-inch thick end plate provided where required. A steel angle supports the concrete slab edge alongside additional structural steel members. Continuous sealant and backer rods are installed on both sides of the partition. All welds are specified to be ground smooth, prepared, primed, and field painted.
