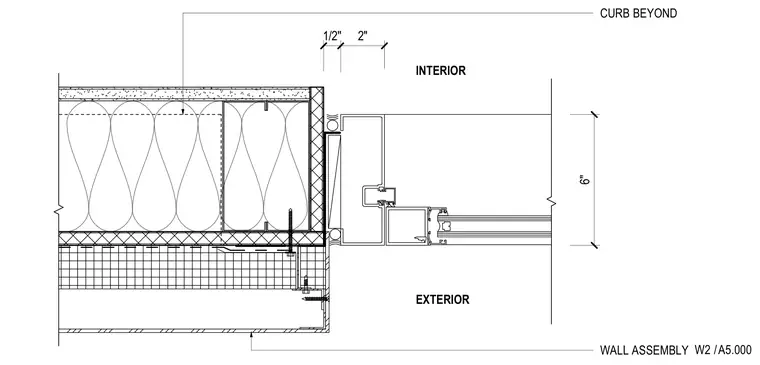

An aluminum door frame connects to an exterior framed wall assembly referencing W2 / A5.000. The door jamb aligns with framing components while maintaining designated dimensional clearances of six inches, two inches, and one-half inch. Sealant is applied at the perimeter joint between the aluminum frame and the adjacent wall construction. A curb beyond is indicated in the plan view.
