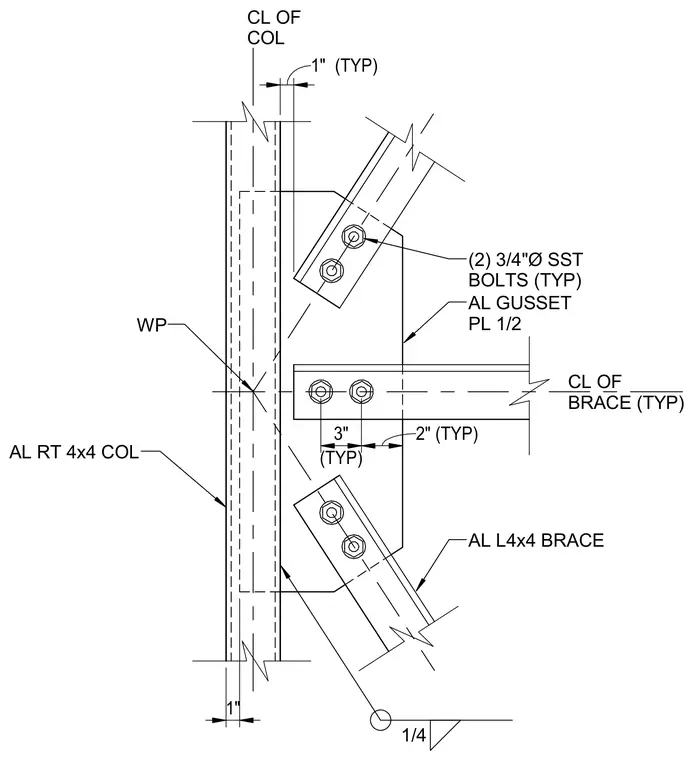

An aluminum L4x4 brace connects to an aluminum rectangular tube column using a one-half inch aluminum gusset plate. Two three-quarter inch diameter stainless steel bolts fasten each brace leg to the gusset plate. The gusset plate is welded to the column with a quarter-inch fillet weld.
AL L4x4 BRACE AL RT 4x4 COL WP 1" (TYP) 3" 2" (TYP) CL OF BRACE (TYP) 1" (TYP) CL OF COL AL GUSSET PL 1/2 1/4 (2) 3/4"Ø SST BOLTS (TYP)
