Wood look panels attach to a scheduled partition using a manufacturer cleat hanging system with a manufacturer required gap for installation at the top. The adjacent ceiling consists of a gypsum board ceiling assembly with framing spaced at sixteen inches on center maximum, finished with tape and joint compound and a scheduled finish. A Z-clip secures the transition between the ceiling and wall elements.

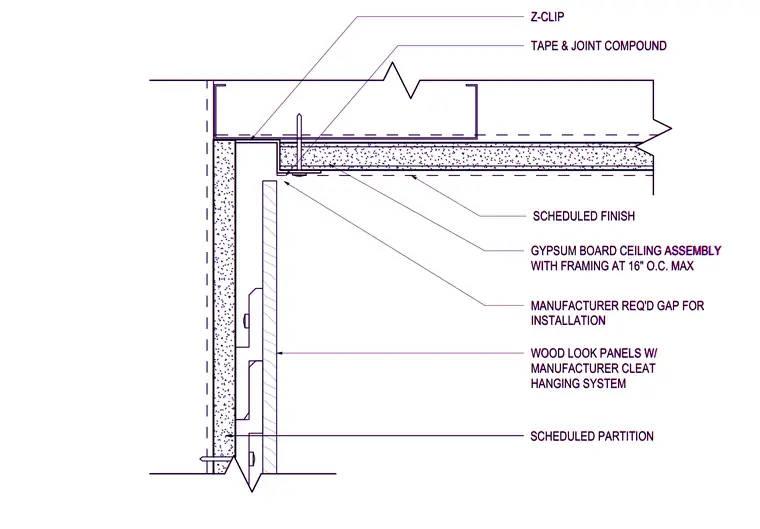

GYPSUM BOARD CEILING ASSEMBLY WITH FRAMING AT 16" O.C. MAX SCHEDULED PARTITION WOOD LOOK PANELS W/ MANUFACTURER CLEAT HANGING SYSTEM SCHEDULED FINISH MANUFACTURER REQ'D GAP FOR INSTALLATION Z-CLIP TAPE & JOINT COMPOUND GYPSUM BOARD CEILING ASSEMBLY WITH FRAMING AT 16" O.C. MAX SCHEDULED PARTITION WOOD LOOK PANELS W/ MANUFACTURER CLEAT HANGING SYSTEM SCHEDULED FINISH MANUFACTURER REQ'D GAP FOR INSTALLATION Z-CLIP TAPE & JOINT COMPOUND
