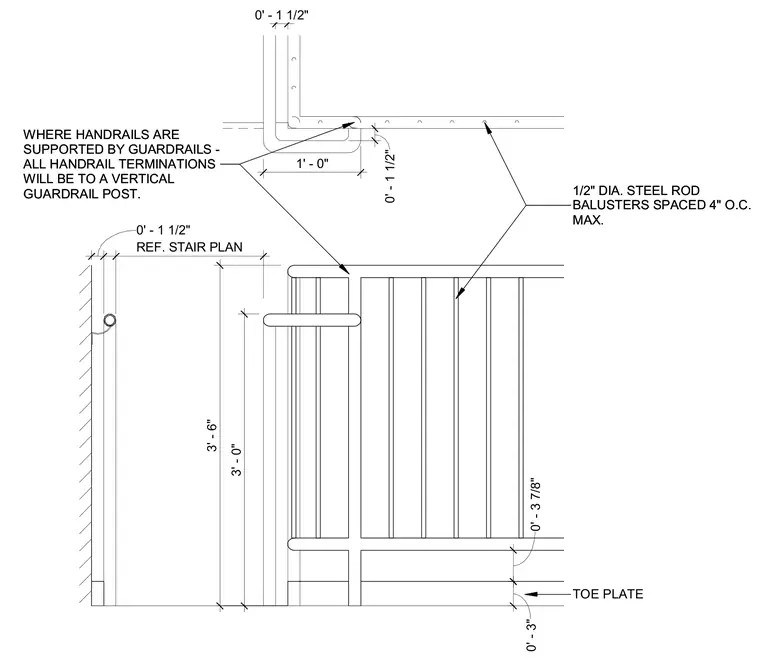

Where handrails are supported by guardrails, all handrail terminations anchor directly to a vertical guardrail post. The assembly includes one-half inch diameter steel rod balusters spaced at a maximum of four inches on center. A toe plate is positioned at the base of the guardrail. Vertical dimensions establish heights of three feet and three feet six inches, with specific clearances and post spacings noted.
3' - 0" 3' - 6" 0' - 3" 0' - 3 7/8" WHERE HANDRAILS ARE SUPPORTED BY GUARDRAILS - ALL HANDRAIL TERMINATIONS WILL BE TO A VERTICAL GUARDRAIL POST. WHERE HANDRAILS ARE SUPPORTED BY GUARDRAILS - ALL HANDRAIL TERMINATIONS WILL BE TO A VERTICAL GUARDRAIL POST. 1' - 0" 0' - 1 1/2" 0' - 1 1/2" 1/2" DIA. STEEL ROD BALUSTERS SPACED 4" O.C. MAX. 1/2" DIA. STEEL ROD BALUSTERS SPACED 4" O.C. MAX. TOE PLATE 0' - 1 1/2" REF. STAIR PLAN
