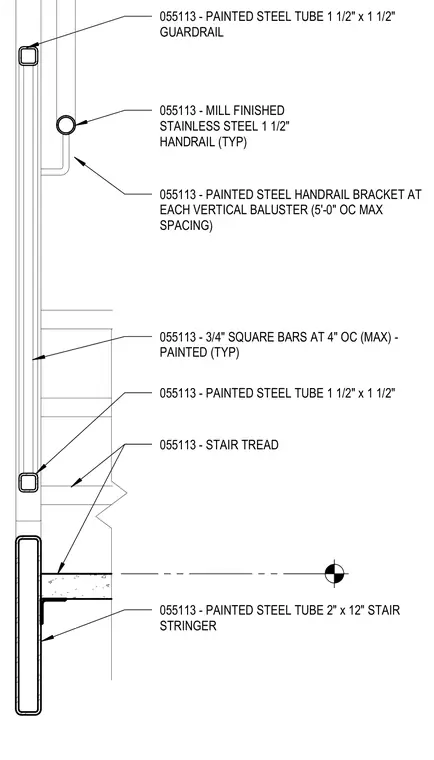

The assembly features a painted steel tube guardrail measuring 1 1/2 inches by 1 1/2 inches positioned above a mill-finished stainless steel handrail measuring 1 1/2 inches in diameter. The handrail attaches via painted steel handrail brackets located at each vertical baluster with a maximum spacing of five feet on center. Vertical infill consists of three-quarter-inch square bars spaced at a maximum of four inches on center. The guardrail framing connects to the stair treads and a painted steel tube stair stringer measuring 2 inches by 12 inches.
055113 - PAINTED STEEL TUBE 1 1/2" x 1 1/2" GUARDRAIL 055113 - PAINTED STEEL TUBE 2" x 12" STAIR STRINGER 055113 - MILL FINISHED STAINLESS STEEL 1 1/2" HANDRAIL (TYP) 055113 - PAINTED STEEL HANDRAIL BRACKET AT EACH VERTICAL BALUSTER (5'-0" OC MAX SPACING) 055113 - STAIR TREAD 055113 - 3/4" SQUARE BARS AT 4" OC (MAX) - PAINTED (TYP) 055113 - PAINTED STEEL TUBE 1 1/2" x 1 1/2"
