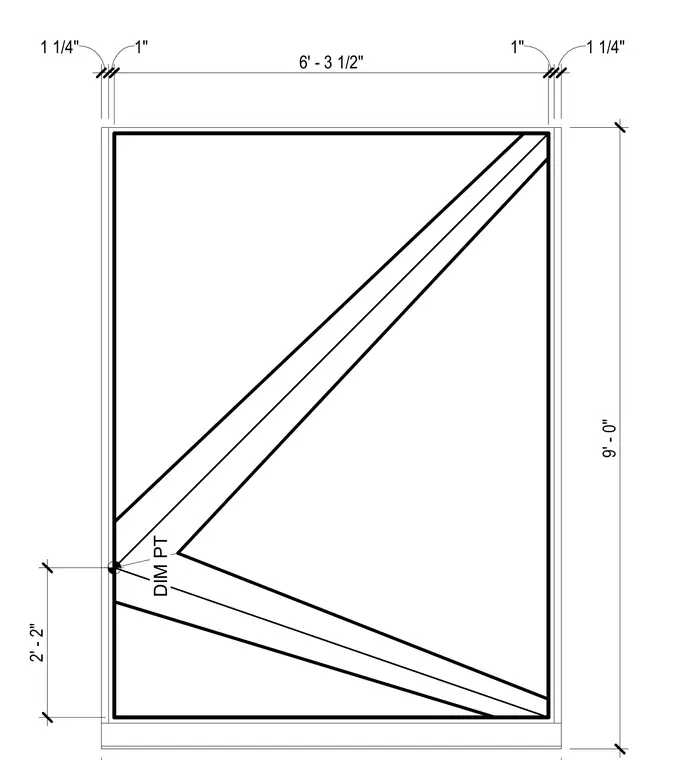

The plan layout provides precise dimension points for structural opening boundaries and diagonal frame elements. Overall dimensions span six feet three and one-half inches horizontally, with one-inch and one and one-quarter-inch offset dimension points. Vertical height totals nine feet zero inches with a lower offset dimension point set at two feet two inches.
