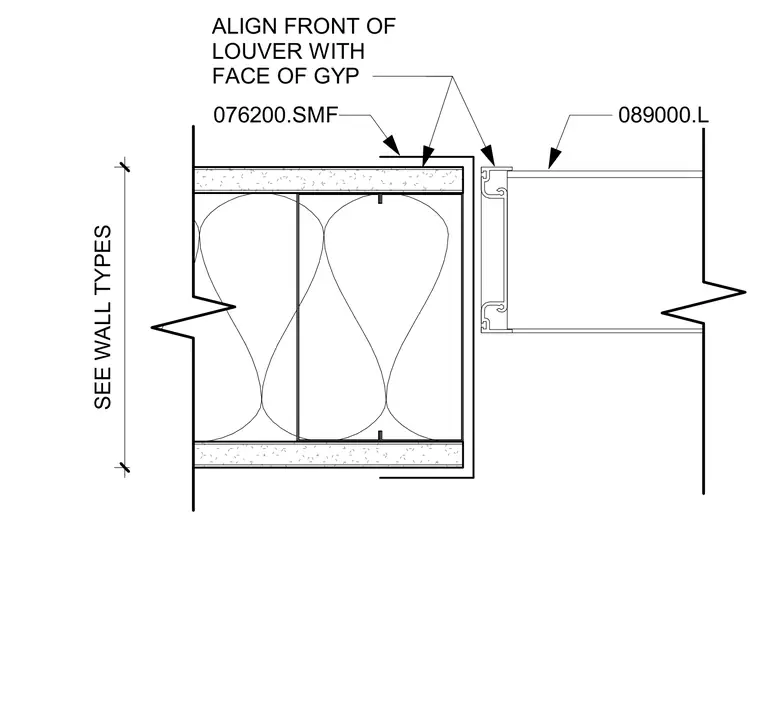

An interior louver is integrated into a metal stud and gypsum board partition wall. The front face of the louver aligns flush with the exterior face of the gypsum board finish. Metal flashing or trim elements wrap the wall opening to interface with the louver frame.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
