Architectural · A-67D9Z

Elevator Jamb

Elements

About this detail

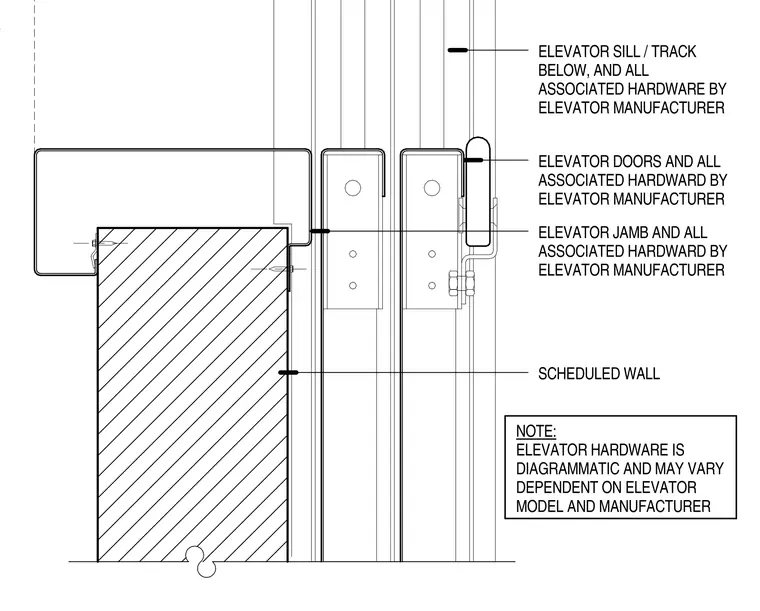

The elevator jamb and sill condition mounts adjacent to a scheduled wall. The elevator doors, jamb, sill, track below, and all associated hardware are provided by the elevator manufacturer and shown diagrammatically. A note indicates that elevator hardware may vary depending on the specific elevator model and manufacturer.
