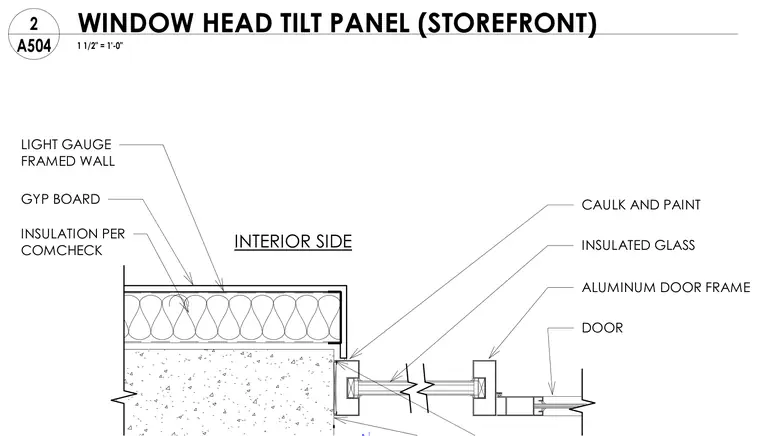

An exterior storefront window head integrates into a tilt-up concrete wall panel lined with light gauge metal framing and gypsum board. Insulation is installed within the stud cavity per Comcheck requirements. An aluminum door frame and insulated glass unit abut the concrete opening, finished with exterior caulk and paint.
DOOR INSULATED GLASS INTERIOR SIDE ALUMINUM DOOR FRAME CAULK AND PAINT LIGHT GAUGE FRAMED WALL GYP BOARD INSULATION PER COMCHECK 1 1/2" = 1'-0" A504 2 WINDOW HEAD TILT PANEL (STOREFRONT)
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
