A hollow metal door assembly features a ten-inch overall system depth, clad in pre-finished aluminum designated as E-MTL-02. The assembly incorporates a one-and-a-half-inch dimension layer over the door framing. The framing profiles and surrounding substrate layers provide a integrated transition at the opening.

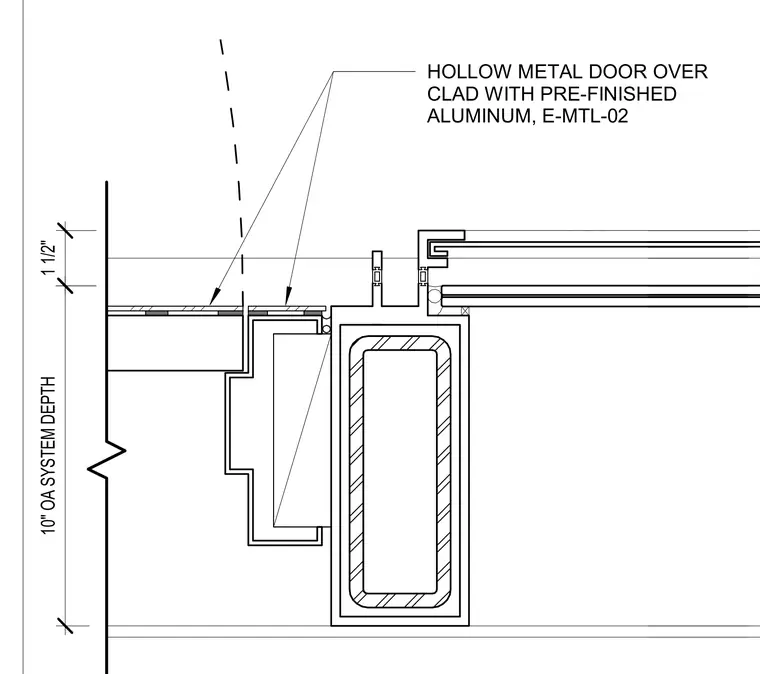

10" OA SYSTEM DEPTH 1 1/2" HOLLOW METAL DOOR OVER CLAD WITH PRE-FINISHED ALUMINUM, E-MTL-02
