An entry door threshold incorporates a ten-inch smooth bottom panel referencing an enlarged detail. The maximum threshold height is limited to one-half inch above the finished floor, maintaining the same level across the transition. Push, pull, or lever type operating hardware is positioned between thirty and forty-four inches above the floor. Approach slopes are limited to a maximum of one-quarter inch per foot.

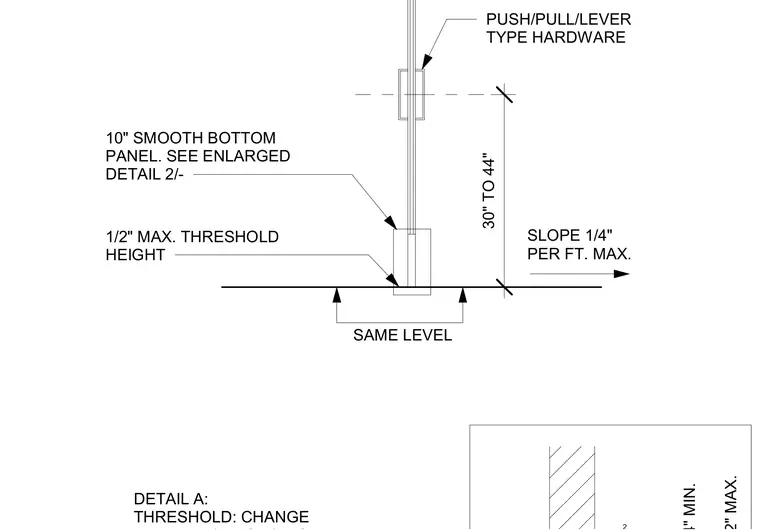

DETAIL A: THRESHOLD: CHANGE 10" SMOOTH BOTTOM PANEL. SEE ENLARGED DETAIL 2/- 1/2" MAX. THRESHOLD HEIGHT 30" TO 44" PUSH/PULL/LEVER TYPE HARDWARE SLOPE 1/4" PER FT. MAX. SAME LEVEL
