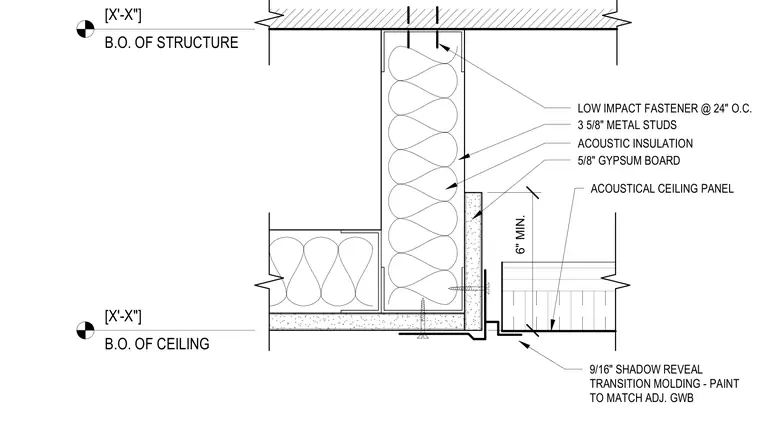

A flush transition connects a gypsum board soffit down to an acoustical ceiling panel system. The vertical drop is framed with three and five-eighths inch metal studs spaced and anchored with low-impact fasteners at twenty-four inches on center into the bottom of the structure. The cavity is filled with acoustic insulation and faced with five-eighths inch gypsum board. A nine-sixteenths inch shadow reveal transition molding is integrated at the junction, painted to match the adjacent gypsum wallboard, providing a clean architectural break between the soffit and the acoustical ceiling grid.
9/16" SHADOW REVEAL TRANSITION MOLDING - PAINT TO MATCH ADJ. GWB [X'-X"] B.O. OF STRUCTURE [X'-X"] B.O. OF CEILING 6" MIN. 3 5/8" METAL STUDS ACOUSTIC INSULATION 5/8" GYPSUM BOARD ACOUSTICAL CEILING PANEL LOW IMPACT FASTENER @ 24" O.C.
