A recessed curtain track is fastened to a ceiling backing plate as scheduled using number eight by two and a half inch flat metal wood screws spaced at twenty-four inches on center maximum. The surrounding ceiling consists of gypsum board with an additional layer provided specifically at ceilings featuring curtain tracks. Framing and layout coordination is referenced to the reflected ceiling plan.

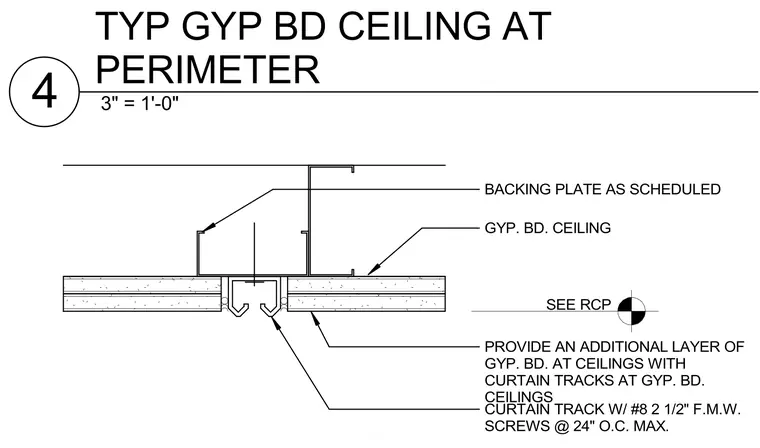

CURTAIN TRACK W/ #8 2 1/2" F.M.W. SCREWS @ 24" O.C. MAX. BACKING PLATE AS SCHEDULED GYP. BD. CEILING PROVIDE AN ADDITIONAL LAYER OF GYP. BD. AT CEILINGS WITH CURTAIN TRACKS AT GYP. BD. CEILINGS SEE RCP 3" = 1'-0" 4 TYP GYP BD CEILING AT PERIMETER
