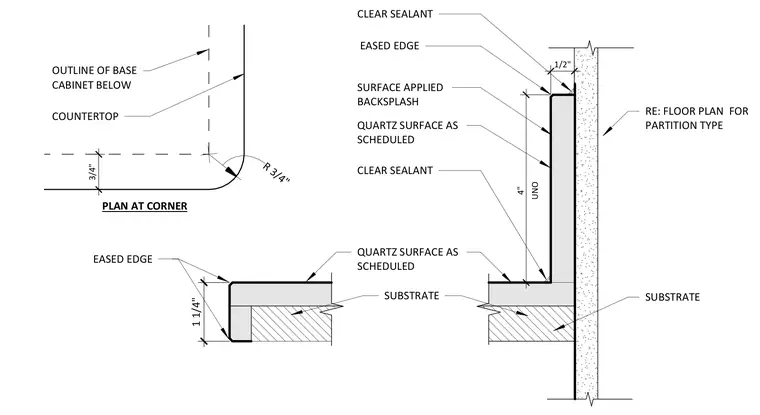

A quartz surface countertop is supported by an underlying substrate with an eased edge profile measuring one and one-quarter inches. A four-inch high surface-applied quartz backsplash is anchored against the partition substrate and sealed with clear sealant at the top and bottom joints. The countertop corner features a three-quarter-inch radius with an overhang offset from the base cabinet below.
SUBSTRATE UNO 4" RE: FLOOR PLAN FOR PARTITION TYPE EASED EDGE CLEAR SEALANT QUARTZ SURFACE AS SCHEDULED 1/2" SURFACE APPLIED BACKSPLASH CLEAR SEALANT SUBSTRATE EASED EDGE OUTLINE OF BASE CABINET BELOW COUNTERTOP R 3/4" 3/4" PLAN AT CORNER 1 1/4" QUARTZ SURFACE AS SCHEDULED
