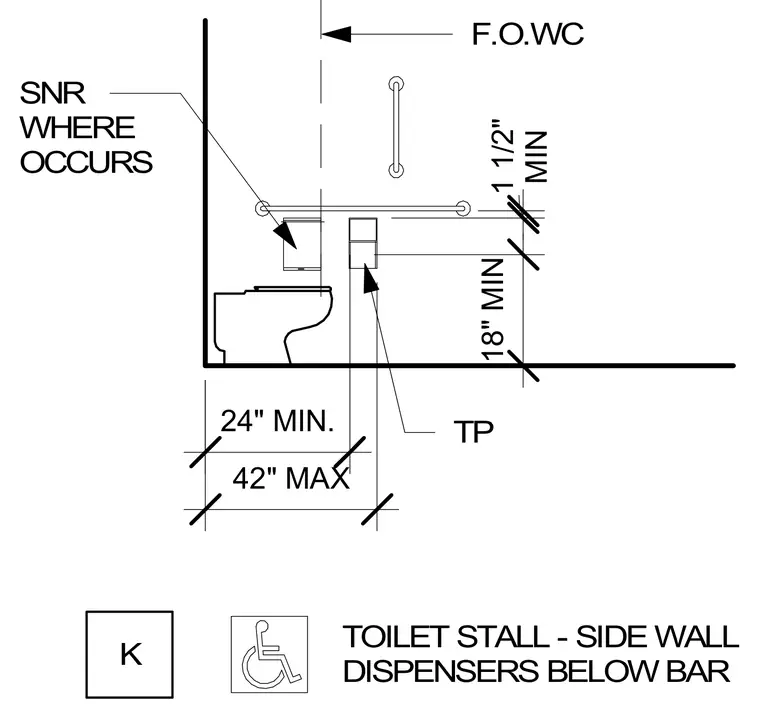

Accessible toilet stall side wall layout indicating mounting heights and horizontal clearances for toilet paper dispensers and grab bars. The toilet paper dispenser is positioned below the grab bar with a minimum vertical clearance of 1 1/2 inches to the grab bar and an 18 inch minimum above the finished floor to the centerline. The horizontal dimension from the rear wall to the front of the water closet is 42 inches maximum, with a 24 inch minimum clearance. Grab bars are mounted with specified dimensional requirements relative to the water closet centerline.
TP TOILET STALL - SIDE WALL DISPENSERS BELOW BAR K SNR WHERE OCCURS F.O.WC 42" MAX 18" MIN 24" MIN. MIN 1 1/2"
