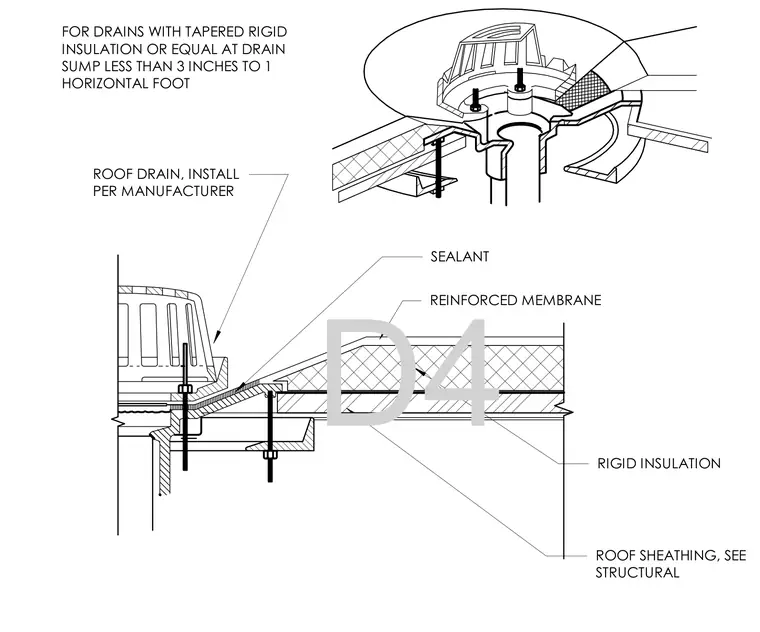

A roof drain fixture is installed through the roof assembly, supported by the roof sheathing and framed per structural drawings. Tapered rigid insulation forms a drain sump around the fixture with a slope of less than three inches to one horizontal foot. A reinforced membrane waterproofing layer extends continuously beneath the drain flange and is sealed with application sealant per manufacturer specifications. Fasteners secure the assembly through the structural support elements.
ROOF SHEATHING, SEE STRUCTURAL FOR DRAINS WITH TAPERED RIGID INSULATION OR EQUAL AT DRAIN SUMP LESS THAN 3 INCHES TO 1 HORIZONTAL FOOT ROOF DRAIN, INSTALL PER MANUFACTURER SEALANT REINFORCED MEMBRANE RIGID INSULATION D4
