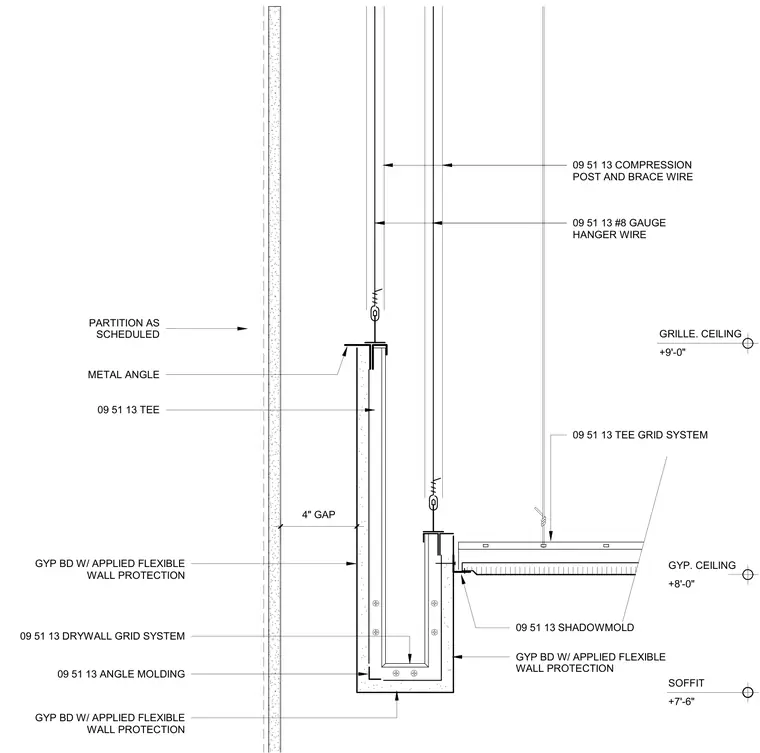

A multi-level ceiling transition incorporates a lower soffit at plus seven feet six inches, a gypsum ceiling at plus eight feet, and an upper grille ceiling at plus nine feet. The assembly features a dropped drywall grid system faced with gypsum board and applied flexible wall protection, suspended by number eight gauge hanger wires and compression posts with brace wires. A metal angle and tee molding secure the upper perimeter, while a shadowmold creates a clean reveal at the junction with the adjacent ceiling plane. A four-inch gap separates the vertical drop from the main partition as scheduled.
SOFFIT +7'-6" GYP. CEILING +8'-0" GRILLE. CEILING +9'-0" METAL ANGLE 09 51 13 TEE 09 51 13 ANGLE MOLDING 09 51 13 DRYWALL GRID SYSTEM GYP BD W/ APPLIED FLEXIBLE WALL PROTECTION GYP BD W/ APPLIED FLEXIBLE WALL PROTECTION GYP BD W/ APPLIED FLEXIBLE WALL PROTECTION 09 51 13 SHADOWMOLD 09 51 13 #8 GAUGE HANGER WIRE 09 51 13 COMPRESSION POST AND BRACE WIRE 09 51 13 TEE GRID SYSTEM PARTITION AS SCHEDULED 4" GAP
