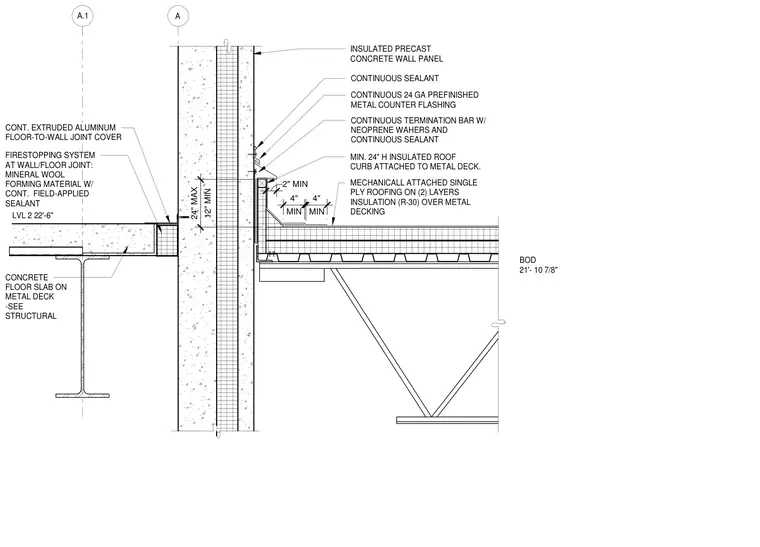

An insulated precast concrete wall panel meets a mechanically attached single-ply roofing assembly over two layers of insulation with an R-30 value on metal decking. A minimum twenty-four-inch high insulated roof curb attaches to the metal deck, featuring a continuous twenty-four gauge prefinished metal counter flashing secured by a continuous termination bar with neoprene washers and continuous sealant. The interior floor slab on metal deck ties into an expansion joint system consisting of a continuous extruded aluminum floor-to-wall joint cover and a firestopping system with mineral wool forming material and continuous field-applied sealant.
LVL 2 22'-6" A.1 A BOD 21'- 10 7/8" INSULATED PRECAST CONCRETE WALL PANEL CONTINUOUS SEALANT CONTINUOUS 24 GA PREFINISHED METAL COUNTER FLASHING CONTINUOUS TERMINATION BAR W/ NEOPRENE WAHERS AND CONTINUOUS SEALANT MIN. 24" H INSULATED ROOF CURB ATTACHED TO METAL DECK. MECHANICALL ATTACHED SINGLE PLY ROOFING ON (2) LAYERS INSULATION (R-30) OVER METAL DECKING CONT. EXTRUDED ALUMINUM FLOOR-TO-WALL JOINT COVER FIRESTOPPING SYSTEM AT WALL/FLOOR JOINT: MINERAL WOOL FORMING MATERIAL W/ CONT. FIELD-APPLIED SEALANT CONCRETE FLOOR SLAB ON METAL DECK -SEE STRUCTURAL MIN 4" MIN 4" 2" MIN 12" MIN 24" MAX
