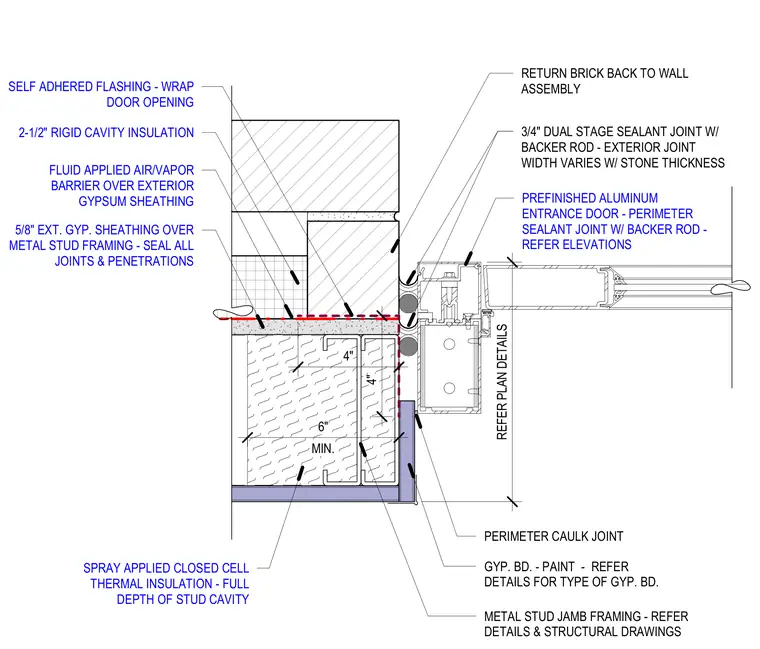

An aluminum entrance door frame meets a cold-formed metal stud jamb framing assembly integrated with a brick and stone veneer wall. The wall assembly incorporates five-eighths-inch exterior gypsum sheathing over metal studs, covered by a fluid-applied air and vapor barrier and two-and-a-half-inch rigid cavity insulation. A self-adhered flashing wraps the door opening, while spray-applied closed-cell thermal insulation fills the stud cavity to a minimum six-inch depth. The exterior joint features a three-quarter-inch dual-stage sealant joint with a backer rod, transitioning to the prefinished aluminum entrance door. Interior finishes include gypsum board with paint over metal stud framing, finished with a perimeter caulk joint.
REFER PLAN DETAILS 3/4" DUAL STAGE SEALANT JOINT W/ BACKER ROD - EXTERIOR JOINT WIDTH VARIES W/ STONE THICKNESS METAL STUD JAMB FRAMING - REFER DETAILS & STRUCTURAL DRAWINGS GYP. BD. - PAINT - REFER DETAILS FOR TYPE OF GYP. BD. PERIMETER CAULK JOINT MIN. 6" SPRAY APPLIED CLOSED CELL THERMAL INSULATION - FULL DEPTH OF STUD CAVITY 4" 4" PREFINISHED ALUMINUM ENTRANCE DOOR - PERIMETER SEALANT JOINT W/ BACKER ROD - REFER ELEVATIONS 5/8" EXT. GYP. SHEATHING OVER METAL STUD FRAMING - SEAL ALL JOINTS & PENETRATIONS FLUID APPLIED AIR/VAPOR BARRIER OVER EXTERIOR GYPSUM SHEATHING SELF ADHERED FLASHING - WRAP DOOR OPENING 2-1/2" RIGID CAVITY INSULATION RETURN BRICK BACK TO WALL ASSEMBLY
