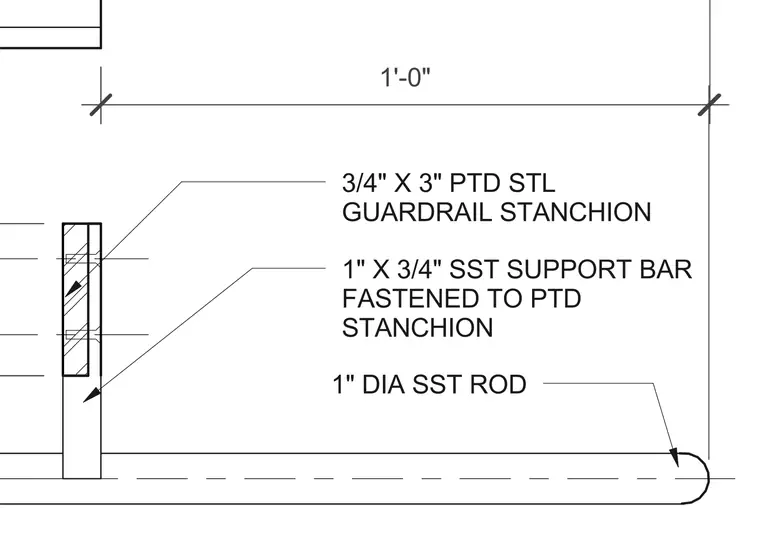

A guardrail assembly utilizes a 3/4-inch by 3-inch painted steel guardrail stanchion. A 1-inch by 3/4-inch stainless steel support bar is fastened directly to the painted stanchion. A 1-inch diameter stainless steel rod extends horizontally through the assembly.
3/4" X 3" PTD STL GUARDRAIL STANCHION 1" X 3/4" SST SUPPORT BAR FASTENED TO PTD STANCHION 1" DIA SST ROD 1'-0" 1'-0"
Members view this detail in full resolution, download the CAD files (SVG, PDF), and open any detail in the built-in CAD editor to edit and export DXF or DWG.
