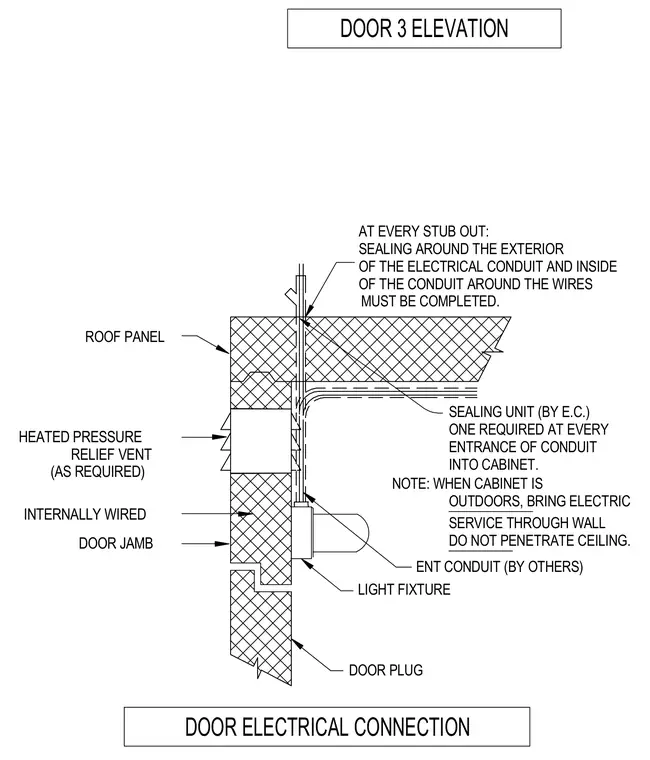

An electrical conduit by others routes through the roof panel and connects to an internally wired door jamb equipped with a light fixture and door plug. A sealing unit by the electrical contractor is required at every entrance of the conduit into the cabinet. At every stub out, sealing must be completed around the exterior of the electrical conduit and inside the conduit around the wires. When the cabinet is outdoors, the electric service must be brought through the wall without penetrating the ceiling. A heated pressure relief vent is included as required.
DOOR 3 ELEVATION DOOR ELECTRICAL CONNECTION DOOR JAMB INTERNALLY WIRED RELIEF VENT HEATED PRESSURE ROOF PANEL DO NOT PENETRATE CEILING. ENT CONDUIT (BY OTHERS) DOOR PLUG LIGHT FIXTURE INTO CABINET. SEALING UNIT (BY E.C.) NOTE: WHEN CABINET IS ENTRANCE OF CONDUIT OUTDOORS, BRING ELECTRIC SERVICE THROUGH WALL ONE REQUIRED AT EVERY (AS REQUIRED) SEALING AROUND THE EXTERIOR OF THE ELECTRICAL CONDUIT AND INSIDE AT EVERY STUB OUT: OF THE CONDUIT AROUND THE WIRES MUST BE COMPLETED.
