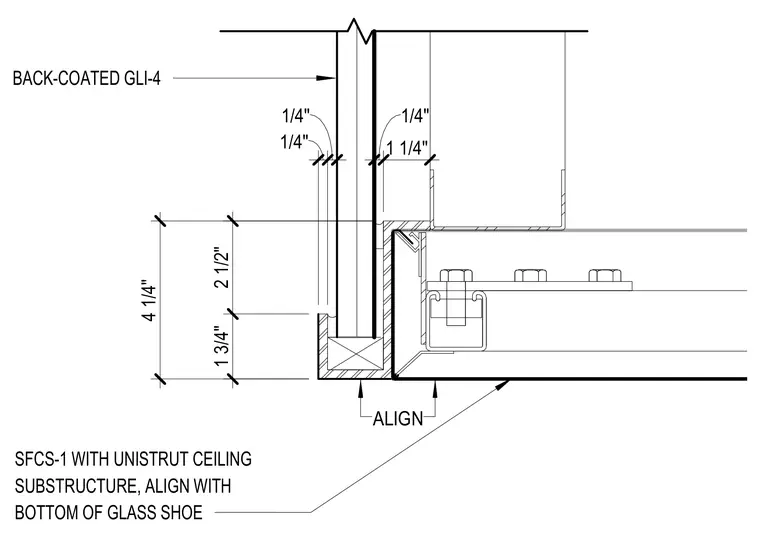

An interior glass wall terminates at a Unistrut ceiling substructure with a glass shoe aligned to the bottom of the glazing. Back-coated glass type GLI-4 is secured within the metal channel framing. Dimensions define the vertical alignment and clearances between the glass assembly and the overhead ceiling components.
S F C S - 1 W I T H U N I S T R U T C E I L I N G S U B S T R U C T U R E , A L I G N W I T H B O T T O M O F G L A S S S H O E B A C K - C O A T E D G L I - 4 ALIGN 4 1 / 4 " 1 1 / 4 " 1 / 4 " 1 3 / 4 " 2 1 / 2 " 1 / 4 " 1 / 4 "
