The cold-formed steel stud has its flanges cut from the web and the web bent up to form a two-inch minimum return. Three three-quarter-inch number ten pan head self-tapping sheet metal screws secure the bent web face. Three-quarter-inch number ten low profile flat head self-tapping sheet metal screws are installed on each stud on each side. A half-inch diameter powder-driven fastener anchors the assembly.

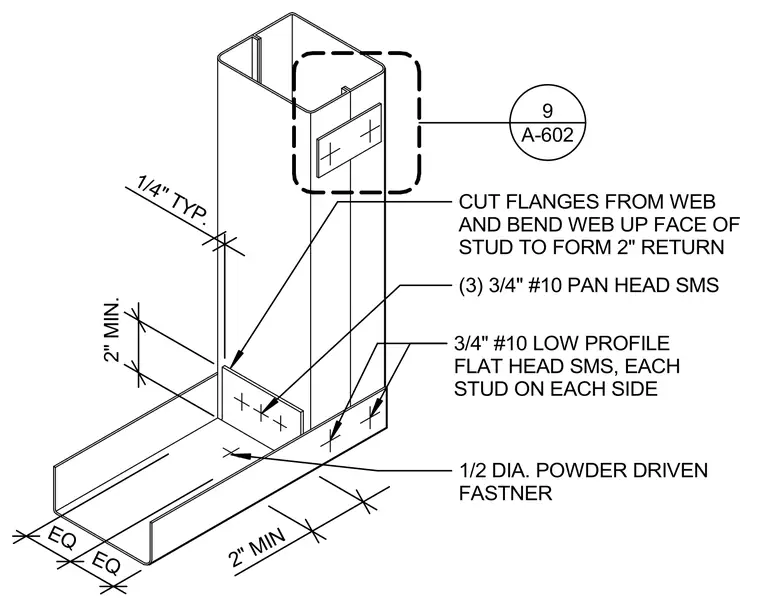

2" MIN. 2" MIN EQ EQ CUT FLANGES FROM WEB AND BEND WEB UP FACE OF STUD TO FORM 2" RETURN (3) 3/4" #10 PAN HEAD SMS 3/4" #10 LOW PROFILE FLAT HEAD SMS, EACH STUD ON EACH SIDE 1/4" TYP. 1/2 DIA. POWDER DRIVEN FASTNER A-602 9
