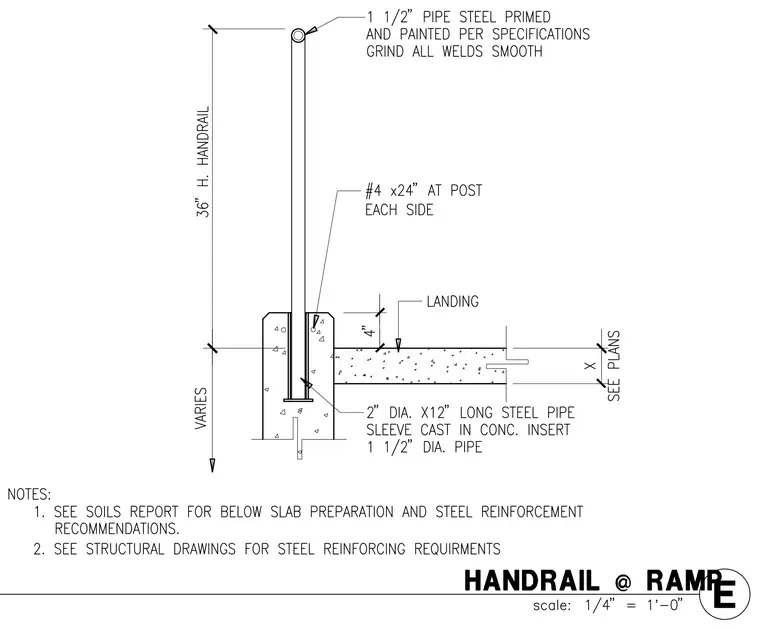

A 1 1/2-inch primed and painted steel pipe handrail is anchored into a concrete ramp landing at a height of 36 inches. The post is inserted into a 2-inch diameter by 12-inch long steel pipe sleeve cast into the concrete. Additional #4 reinforcement bars measuring 24 inches are placed at each side of the post. All welds must be ground smooth per specifications.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
