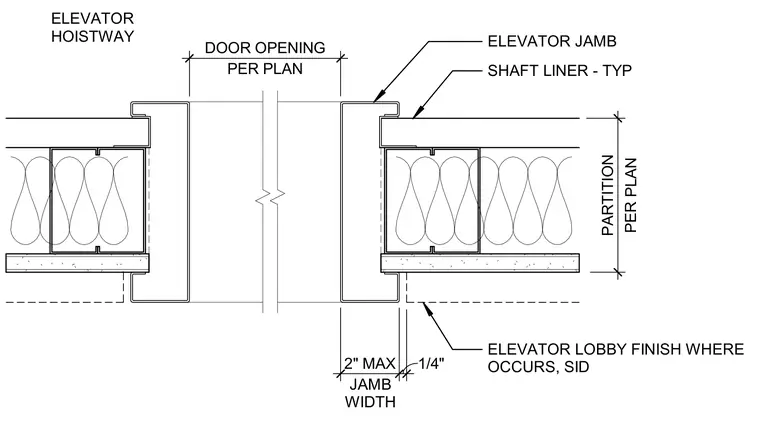

The assembly features an elevator jamb adjacent to a shaft liner partition typical per plan with a door opening per plan. The jamb accommodates a two-inch maximum width and a one-quarter-inch clearance. Elevator lobby finishes occur as indicated by the side elevator hoistway condition.
ELEVATOR JAMB SHAFT LINER - TYP PER PLAN PARTITION PER PLAN DOOR OPENING ELEVATOR LOBBY FINISH WHERE OCCURS, SID ELEVATOR HOISTWAY 2" MAX 1/4" JAMB WIDTH
