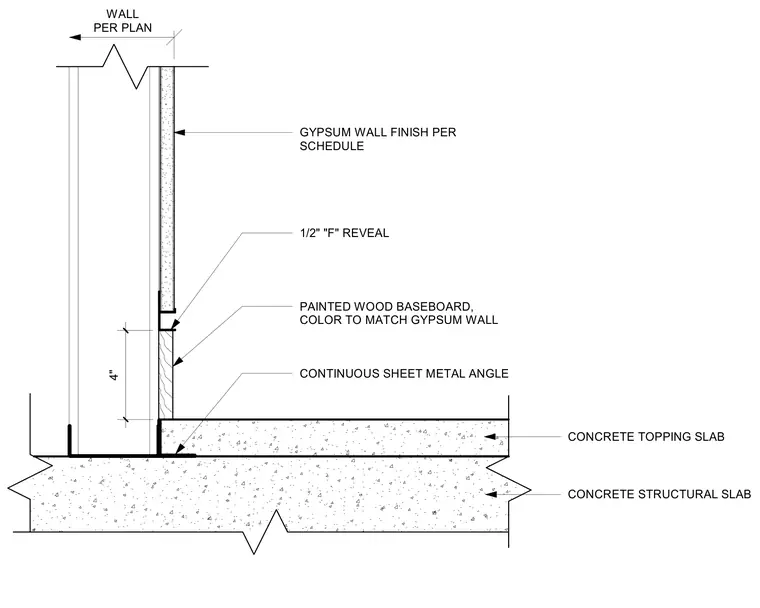

A gypsum wall partition meets a concrete floor slab supported by a structural concrete slab and topping slab. A continuous sheet metal angle anchors the wall assembly at the base. The gypsum wall finish features a four-inch painted wood baseboard and a one-half-inch F-reveal above it, matched in color to the wall finish.
WALL PER PLAN GYPSUM WALL FINISH PER SCHEDULE 1/2" "F" REVEAL PAINTED WOOD BASEBOARD, COLOR TO MATCH GYPSUM WALL CONTINUOUS SHEET METAL ANGLE CONCRETE STRUCTURAL SLAB CONCRETE TOPPING SLAB 4"
