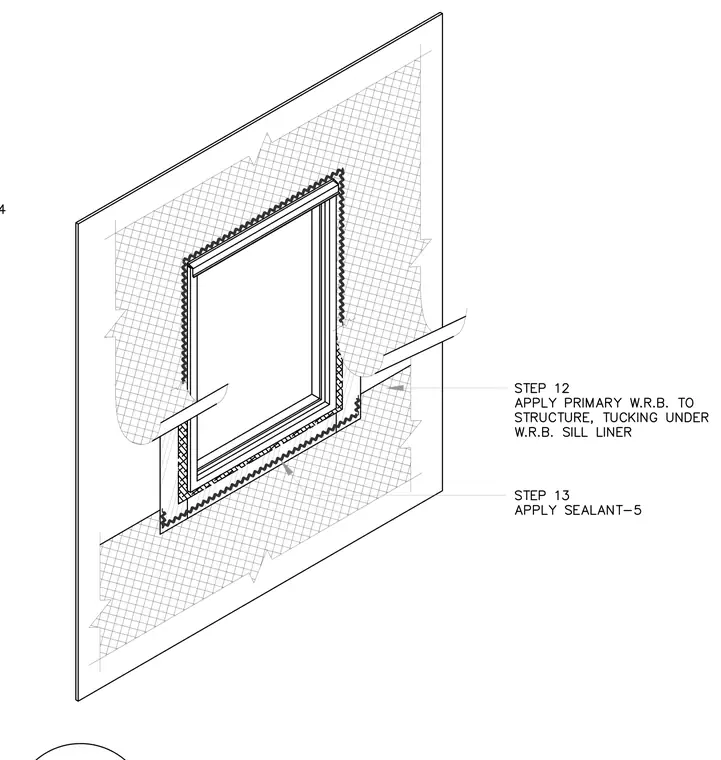

Step 12 applies the primary water-resistive barrier to the structure, tucking it under the water-resistive barrier sill liner. Step 13 applies sealant-5 along the perimeter joints. These sequential installation steps ensure proper drainage and weatherproofing around the storefront opening.
