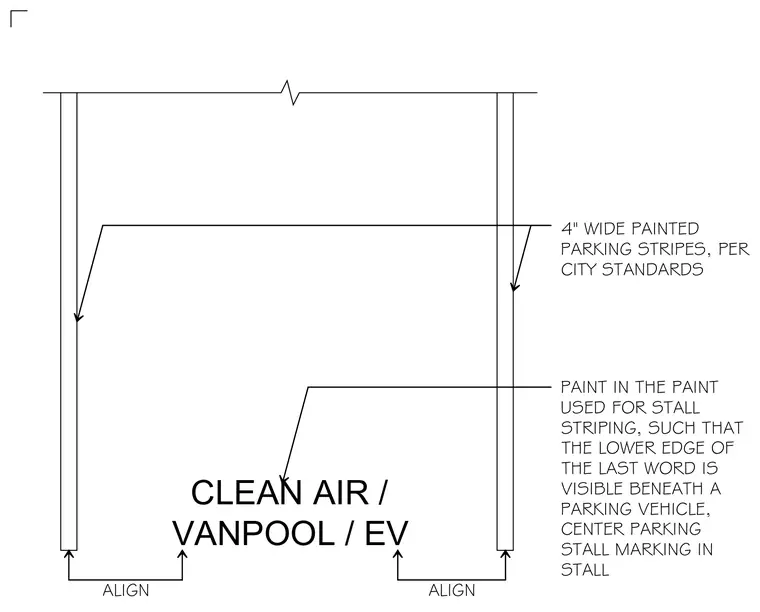

Four-inch wide painted parking stripes define the stall boundaries per city standards. Pavement markings include lettering such as clean air, vanpool, or electric vehicle designations painted with standard stall striping paint. The lettering is centered within the stall and aligned so the lower edge remains visible beneath a parked vehicle.
4" WIDE PAINTED PARKING STRIPES, PER CITY STANDARDS PAINT IN THE PAINT USED FOR STALL STRIPING, SUCH THAT THE LOWER EDGE OF THE LAST WORD IS VISIBLE BENEATH A PARKING VEHICLE, CENTER PARKING STALL MARKING IN STALL ALIGN ALIGN CLEAN AIR / VANPOOL / EV
