An entrance grille integrates with a traffic-coated substrate and pedestal paver assembly featuring a defined sill treatment and tile trim. A maximum one-to-two bevel transitions to the entrance grille with specified vertical rise limits. Thinset tile finishes adjacent flooring areas as scheduled.

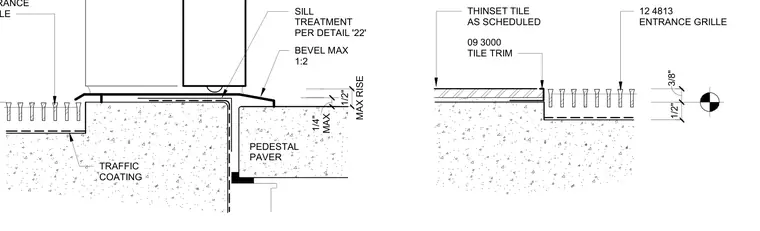

12 4813 ENTRANCE GRILLE 1/2" 3/8" THINSET TILE AS SCHEDULED 09 3000 TILE TRIM BEVEL MAX 1:2 MAX 1/4" MAX RISE 1/2" SILL TREATMENT PER DETAIL '22' TRAFFIC COATING PEDESTAL PAVER ENTRANCE GRILLE
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
