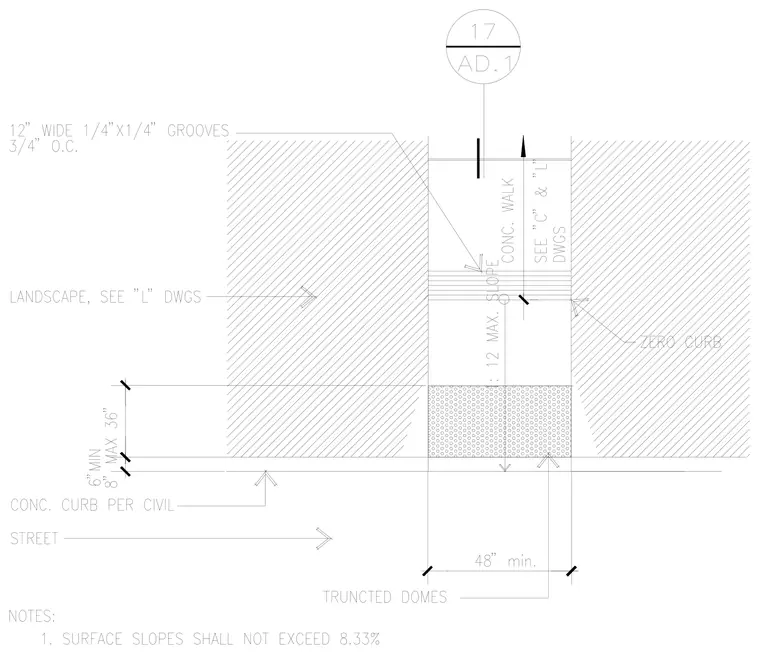

A concrete sidewalk slopes toward a street intersection featuring a zero curb and truncated domes across a forty-eight inch minimum width. The walking surface includes twelve-inch wide one-quarter-inch by one-quarter-inch grooves spaced at three-quarters of an inch on center, with surface slopes restricted to a maximum of eight point thirty-three percent. Concrete curbs and adjacent landscape elements are coordinated per civil and landscape drawings.
