Accessible Shower Plan, Elevation, and Section Details

Materials

Elements

About this detail

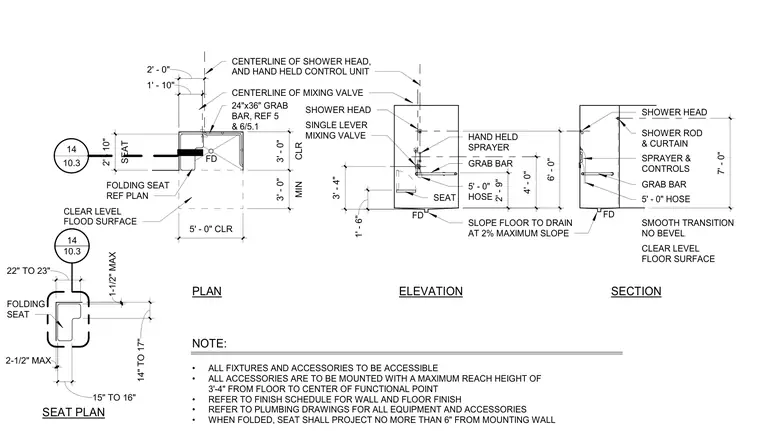

This drawing outlines the spatial configuration, clearances, and accessibility requirements for an accessible shower enclosure including a plan, elevation, and section view. The layout indicates a clear level floor surface with a maximum two percent floor slope leading to a floor drain, a folding seat projection limit, and precise mounting heights for grab bars, single lever mixing valves, and shower heads. Fixtures and accessories are positioned to comply with accessibility standards, requiring a maximum reach height of three feet four inches from the floor to the center of functional points.
