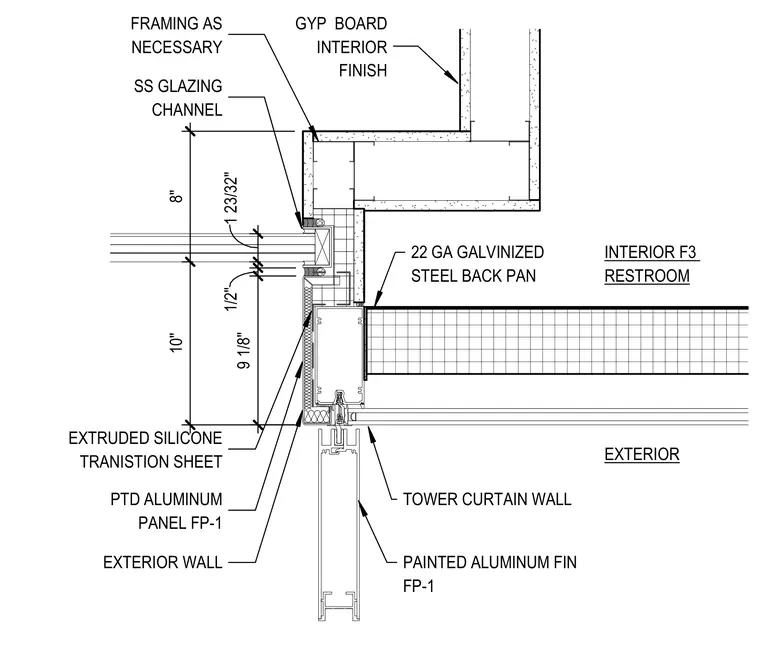

This plan detail shows the exterior wall junction at the podium level, featuring a tower curtain wall assembly with a painted aluminum fin designated as FP-1. The exterior facade incorporates a painted aluminum panel, an extruded silicone transition sheet, and a stainless steel glazing channel. A twenty-two gauge galvanized steel back pan bridges the transition to the interior framing as necessary. The interior side finishes with gypsum board within a restroom space.
1 2 3 / 3 2 " PAINTED ALUMINUM FIN FP-1 TOWER CURTAIN WALL PTD ALUMINUM PANEL FP-1 INTERIOR F3 RESTROOM EXTERIOR 1 0 " 8 " 9 1 / 8 " 1 / 2 " 22 GA GALVINIZED STEEL BACK PAN FRAMING AS NECESSARY GYP BOARD INTERIOR FINISH EXTERIOR WALL SS GLAZING CHANNEL EXTRUDED SILICONE TRANISTION SHEET
