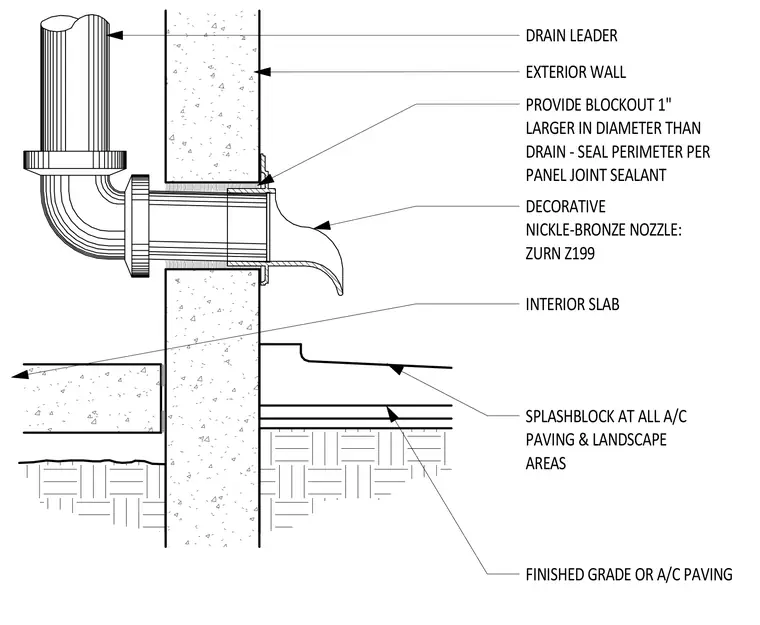

An exterior wall penetrated by a drain leader connects to a decorative nickel-bronze nozzle of type Zurn Z199, positioned above an interior slab and finished grade or air conditioning paving. A blockout one inch larger in diameter than the drain is provided in the wall assembly, with the perimeter sealed per panel joint sealant details. A splash block is located below at all air conditioning paving and landscape areas to receive discharge from the nozzle.
DECORATIVE NICKLE-BRONZE NOZZLE: ZURN Z199 SPLASHBLOCK AT ALL A/C PAVING & LANDSCAPE AREAS PROVIDE BLOCKOUT 1" LARGER IN DIAMETER THAN DRAIN - SEAL PERIMETER PER PANEL JOINT SEALANT DRAIN LEADER EXTERIOR WALL FINISHED GRADE OR A/C PAVING INTERIOR SLAB
