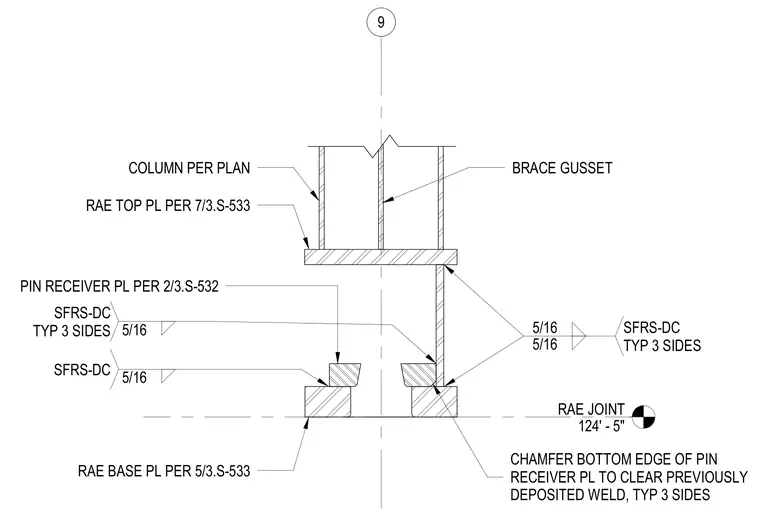

This structural steel detail shows a Rae joint connection at elevation 124'-5" on grid 9. A column per plan sits above a Rae top plate, which connects to a brace gusset. Below, a pin receiver plate is welded to a Rae base plate using five-sixteenths inch fillet welds on three sides, with the bottom edge chamfered to clear previously deposited weld material. Five-sixteenths inch welds secure the assembly with SFRS-DC designation typically applied on three sides.
RAE JOINT 124' - 5" 9 RAE BASE PL PER 5/3.S-533 PIN RECEIVER PL PER 2/3.S-532 RAE TOP PL PER 7/3.S-533 5/16 5/16 SFRS-DC TYP 3 SIDES 5/16 SFRS-DC CHAMFER BOTTOM EDGE OF PIN RECEIVER PL TO CLEAR PREVIOUSLY DEPOSITED WELD, TYP 3 SIDES 5/16 SFRS-DC TYP 3 SIDES COLUMN PER PLAN BRACE GUSSET
