A rammed earth panel is anchored to a concrete wall using manufacturer-specified channel iron and mounting brackets. The assembly includes a steel flat bar welded to the channel iron. A mounting bracket with a through hole provides structural anchoring per the manufacturer specifications. The concrete wall is built per structural drawings while the rammed earth panel is detailed per interior drawings.

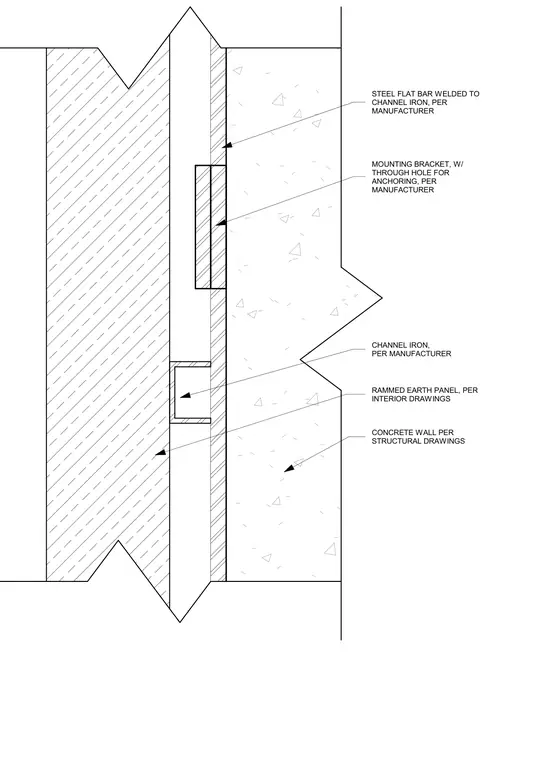

MOUNTING BRACKET, W/ THROUGH HOLE FOR ANCHORING, PER MANUFACTURER STEEL FLAT BAR WELDED TO CHANNEL IRON, PER MANUFACTURER RAMMED EARTH PANEL, PER INTERIOR DRAWINGS CONCRETE WALL PER STRUCTURAL DRAWINGS CHANNEL IRON, PER MANUFACTURER
