Architectural · A-646W4

Typical Storefront Sill

Materials

Elements

Walls Storefronts Floors / Slabs Waterproofing / Flashing Site / Paving

About this detail

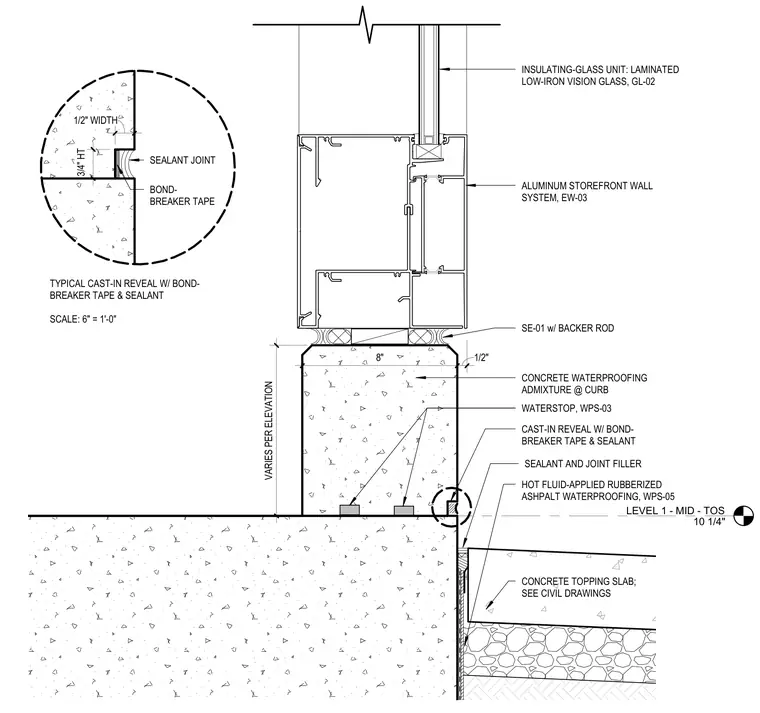

An aluminum storefront wall system, designated EW-03, bears on an eight-inch concrete curb with an insulating-glass unit of laminated low-iron vision glass, GL-02. The storefront system rests on a sill shim designated SE-01 with a backer rod and sealant joint. The concrete curb incorporates a waterproofing admixture WPS-03 and a waterstop, with a cast-in reveal featuring a half-inch width and three-quarter-inch height, bond-breaker tape, and sealant. A concrete topping slab shown per civil drawings meets the curb assembly, protected by hot fluid-applied rubberized asphalt waterproofing WPS-05, sealant, and joint filler.
