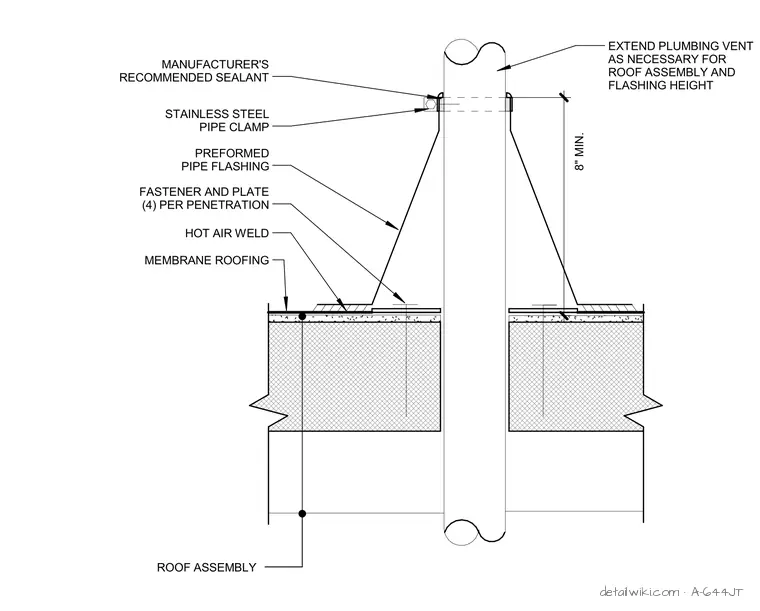

A-644JT — Roof Plumbing Vent/ Conduit Detail

Architectural · A-644JT

Roof Plumbing Vent/ Conduit Detail

Scale: 3" = 1'-0"
Units: imperial
Sheet: A7.34
Discipline: Architectural

Materials

Membrane / Roofing Stainless Steel Steel

Elements

Connections / Plates Roof / Floor Openings Roofs Waterproofing / Flashing

Connections

Bolted Connection Welded Connection

Text on the drawing

EXTEND PLUMBING VENT AS NECESSARY FOR ROOF ASSEMBLY AND FLASHING HEIGHT 8" MIN. MANUFACTURER'S RECOMMENDED SEALANT STAINLESS STEEL PIPE CLAMP PREFORMED PIPE FLASHING FASTENER AND PLATE (4) PER PENETRATION HOT AIR WELD ROOF ASSEMBLY MEMBRANE ROOFING
