Custom millwork casework cabinet features two-inch diameter ventilation holes in the side panels spaced at six inches on center where the audio-visual equipment rack occurs. One-inch diameter ventilation holes are provided at the lower portion spaced at six inches on center. The cabinet stands at an overall height of two feet ten inches.

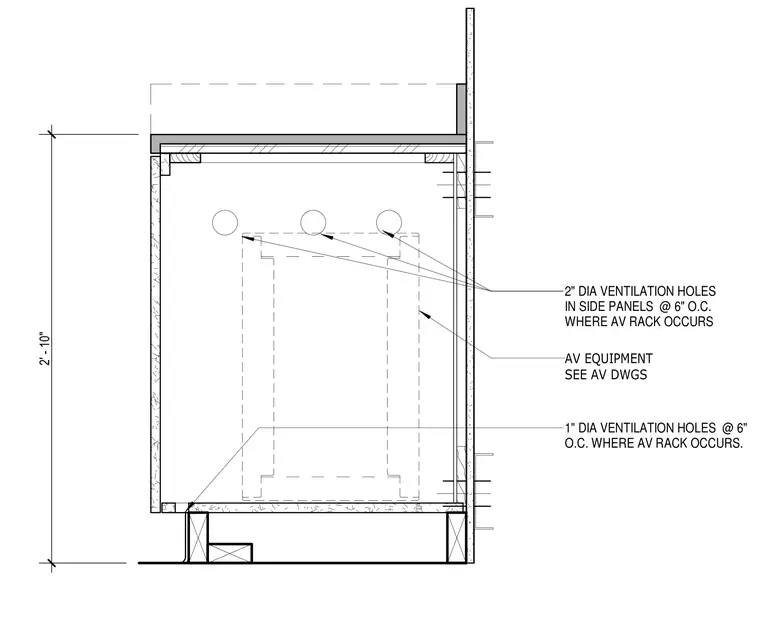

1" DIA VENTILATION HOLES @ 6" O.C. WHERE AV RACK OCCURS. 2" DIA VENTILATION HOLES IN SIDE PANELS @ 6" O.C. WHERE AV RACK OCCURS AV EQUIPMENT SEE AV DWGS 2' - 10"
